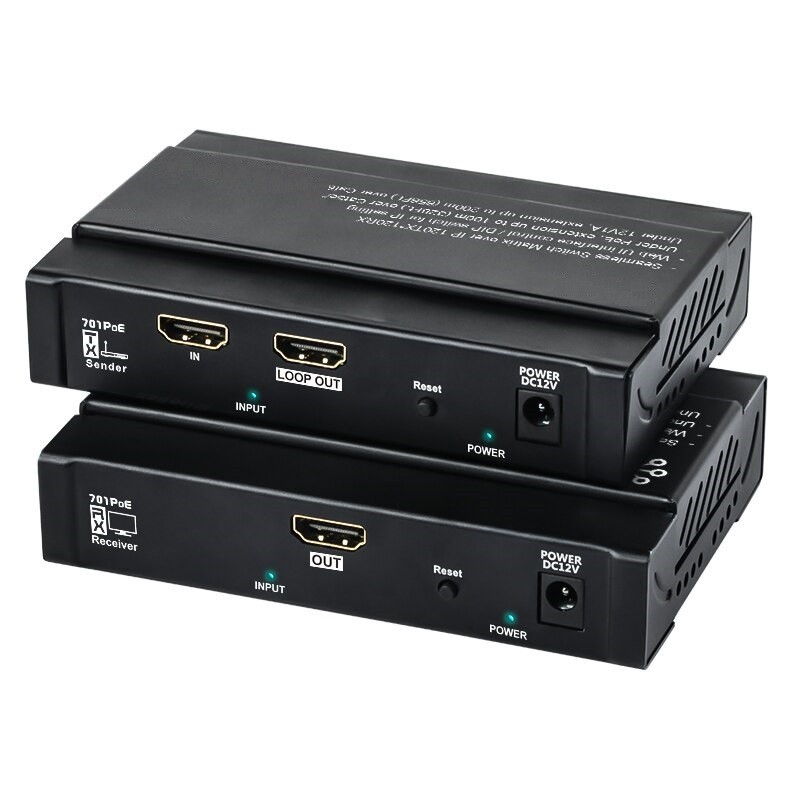

HDMI Matrix over the network (IP), up to 24 transmitters and 96 receivers, 1080p @ 60Hz, Kit w/Receiver and Transmitter
Product code: HDMI-MATRIX24X96-IP
HDMI MATRIX24X96-IP, for example. connected to a 48 port PoE switch (with IGMP eller IFMP Snooping). So you decide how many inputs and outputs you want. In this way you can achieve longer range, since a network cable can run 100 meters.
Technician: TS
HDMI-MATRIX24X96-IP
1 Item
Data sheet
- Forsyning
- 12VDC, 1Amp
- Opløsning
- Op til 1080p @60Hz
- Driftstemperatur
- 0 - +40°C
- PoE
- 802.3af
- Lyd
- 2.1 channel stereo
- Switch
- Kan tilsluttes switch som supportere IGMP/IFMP snooping
- Udvendige mål
- 125 x 84 x 25mm
- Forsinkelse
- Videosignal kan være forsinket ca. 120mS
- HDMI
- HDMI type A
HDMI Matrix over IP.
Video Wall configuration
Setup with DIP switches (TX-RX Pair)
Max 24 transmitters and 96 receivers (contact us for buying TX or RX units separately.) < br> HDMI 1.3, HDCP 1.3.
HDMI loop out to the local monitor
Resolution 1080p @ 60/50/30/25 / 24Hz, 720p @ 60 / 50Hz.
point to point over Cat 6. Maximum . 100meter. Point to many Hotels can be supplied via PoE (802.3af) or 12VDC 1A (PSU included).
Power Consumption: 2.5W.
Switch must support protocol: IGMP Snooping or IFMP.
Delay: 120ms
Operating temperature: 0 ~ 40 ° C.
