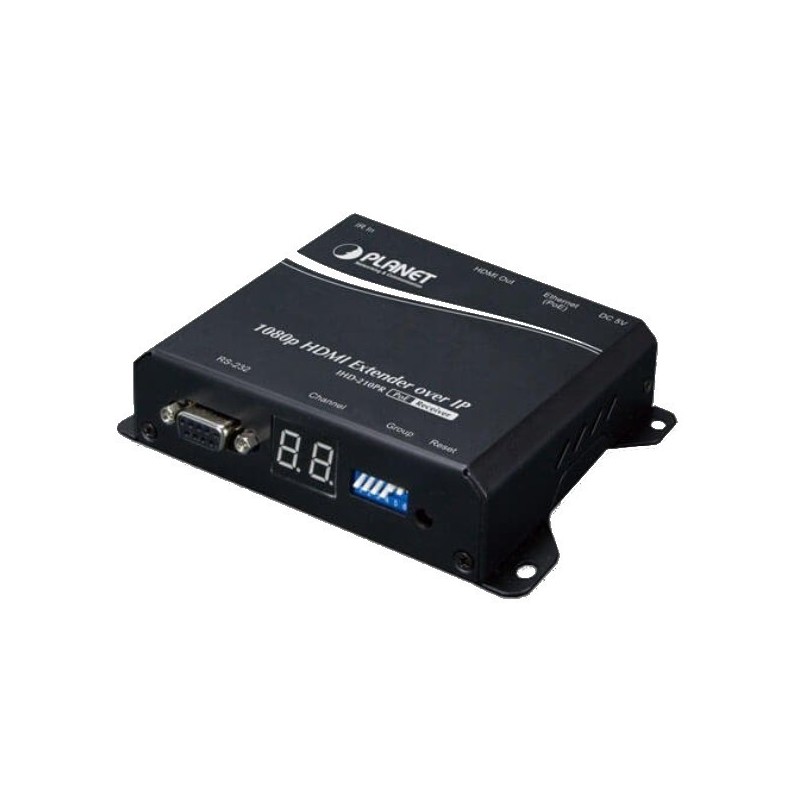

HDMI Extender 1080p HD over IP network, with PoE, or point to point with PDS cable. Receier module. Purchase Transmitter

Product code: HDMI-MULTI-HD-R

HDMI Video Receiver with PoE
Transmitter Module is purchased: HDMI-Multi-HD-T
Video Wall with a maximum of 64 units
H.264 Video Encoder / Decoder, IR transfer
Delay of approximately 1 second from transmitter to receiver
HDMI 1.4a
Connection over IP - Use switch with IGMP Snooping
Max. 64 Groups
Range Up to 100m - Point to Switch or to Transmitter
Cables Cat 6a. Good quality
Edid Emulation - possibly not on all screens, then buy it from Danbit
1 x RJ45, 1 x DB-9, 1 x HDMI exits
Supply IEEE 802.3AF / to POE + or 5V DC, 2a (not included)
Requires quality switch When used over IP
Dim: 130 x 82 x 30 mm

  • Add to Comparison Remove from Comparison
    • 1,839.00 DKK
    Tax excluded
    Physically in stock
    Quantity

    However, owing to a variety of monitor model types, EDID data may not be usable to all. For example, if you use an HDMI-to-DVI converter to a REAL DVI monitor, the copied EDID (DVI) data may NOT be applicable to HDMI monitors. On the other hand, if using an HDMI-to-DVI converter to a DVI monitor (but in fact it’s an HDMI monitor with DVI connector), the copied EDID (HDMI) data may be applicable to HDMI monitors


    Resolution at the output of the receiver module.

    1080p @ 30/25 Hz
    1080i @ 60/50 Hz
    720p @ 60/50 Hz
    480p @ 60/50 Hz
    480i @ 60/50 Hz

    HDMI extender over IP with PoE delivers an amazing full HD video distribution solution.
    Must be used with one or more transmitter modules HDMI-MULTI-HD-T
    HDMI-MULTI-HD-R can be utilized in existing networks, but requires that the switches in the network support IGMP snooping.

    HDMI-MULTI-HD-R
    17 Items

    Data sheet

    Weight
    290 g
    Forsyning
    IEEE 802.3af/at PoE+; 5V DC, 2A
    Opløsning
    Video In Resolution: 1080p @ 60/50 Hz 1080p @30/25 Hz 1080i @ 60/50 Hz 720p @ 60/50 Hz 480p @ 60/50 Hz 480i @ 60/50 Hz Video Out Resolution: 1080p @30/25 Hz 1080i @ 60/50 Hz 720p @ 60/50 Hz 480p @ 60/50 Hz 480i @ 60/50 Hz
    Driftstemperatur
    0-50°
    Standarder
    IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3af/at PoE+
    Porte
    1 x RJ45, 1 x DB-9, 1 x HDMI out
    Rækkevidde
    100 meters (330 feet) over CAT5e/6 cable
    Kabel
    Cat5e/6 UTP cable
    Kanaler
    DIP (64 channels)
    Båndbredde
    15Mbps (max.)
    Sikkerhed
    HDCP compliant
    Dimensioner
    130 x 82 x 30.25 mm
    Protokol
    TCP, UDP, RTSP, RTP, DHCP, IGMP Snooping, Multicast, IPv4
    HDMI
    HDMI 1.4a
    Video
    H.264 format for video encoder/decoder. MPEG 1 Layer II format for audio encoder/decoder
    Other
    EDID (Extended Display Identification Data) function
