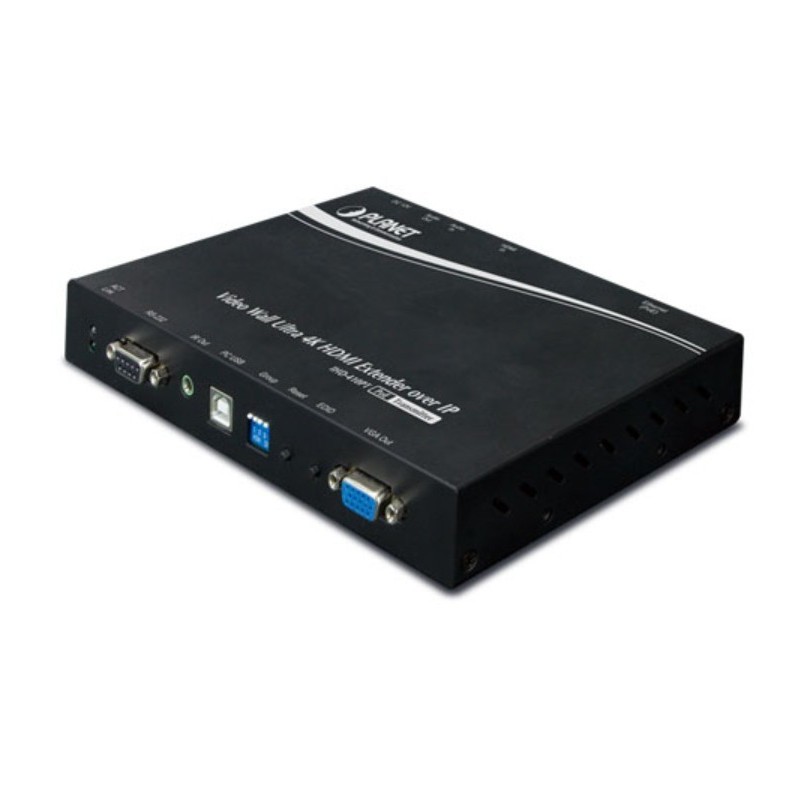

HDMI 4K Extender over LAN and Direct with PoE, Transmitter, with USB

Product code: HDMI-MULTI4K-T

4K HDMI / USB video transmitter PoE over LAN
Suitable for Video wall
Use Multi casting switch (IGMP Snooping)
1080p power. 4K (3840 x 2160) HDMI Resolution
HDMI 1.4a - approx 0.5 sec Transmitter and Receiver Slow
1 x RJ45, 1 x DB-9 female, 1 x HDMI female, 1 x VGA DB-15 female
1 x USB 2.0 Type B (PC / Server)
Can be packed up to 8 x 16 video wall
Send and Receive Choices - 16 Channels (DIP)
Supply: IEEE 802.3af / at PoE +; 12V DC 2A (not supplied)
Range up to 100m over direct Cat. 5e / 6 UTP cables
EDID emulation and & nbsp; IR transfer
As receiver, use HDMI-MULTI4K-R

  • Add to Comparison Remove from Comparison
    • 3,862.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    HDMI/Video Wall over IP med PoE leverer prima 4K video streaming.
    Skal bruges sammen med et eller flere sendermoduler HDMI-MULTI4K-R

    HDMI-MULTI4K-T kan udnyttes i eksisterende netværk, der dog kræver at IP Multicast politikker understøttes af switchene i netværket (IGMP snooping) for at undgå forstyrrelser.

    HDMI-MULTI4K-T
    2 Items

    Data sheet

    Weight
    620 g
    Forsyning
    IEEE 802.3af/at PoE+ 12V DC, 2A
    Opløsning
    HDMI Video:4K (3840x2160) @ 30/24 Hz 1080p @ 60/50 Hz 1080p @ 30/25 Hz 1080i @ 60/50 Hz 720p @ 60/50 Hz 480p @ 60/50 Hz 480i @ 60/50 Hz VGA Video:1080p @ 30/25 Hz 1080i @ 60/50 Hz 720p @ 60/50 Hz 480p @ 60/50 Hz 480i @ 60/50 Hz
    Driftstemperatur
    0-55°
    Standarder
    IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3af/at PoE+
    Porte
    1 x RJ45, 1 x DB-9 female, 1 x HDMI female, 1 x VGA DB-15 female
    LED
    ACT LED x 1 Link LED x 1
    Rækkevidde
    100 meters (330 feet) over CAT5e/6 cable
    Kabel
    Cat5e/6 UTP cable
    Kanaler
    DIP (16 channels)
    Båndbredde
    Approximately 275Mbps@ 4K 30Hz
    Lyd
    HDMI: 2-ch uncompressed audio
    Sikkerhed
    HDCP compliant
    USB
    USB 2.0 type B x 1 (For PC/server)
    Dimensioner
    194 x 114 x 28 mm
    Protokol
    TCP, UDP, RTSP, RTP, DHCP, IGMP Snooping, Multicast, IPv4
    HDMI
    HDMI 1.4a
    Video
    Visual lossless compression
    Other
    EDID (Extended Display Identification Data) function
