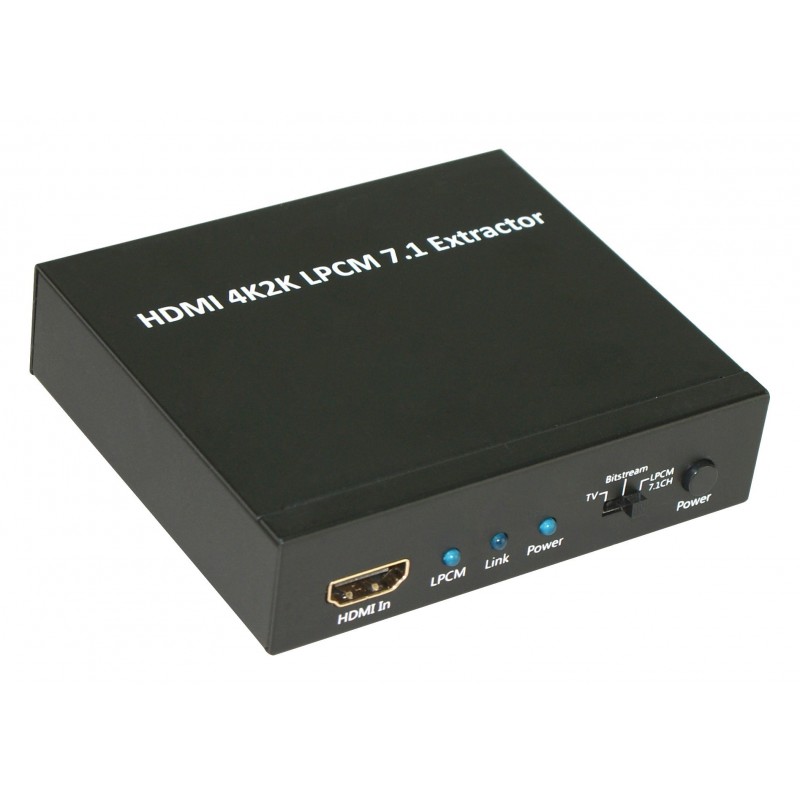

Get audio from an HDMI signal. Audio output is digital Toslink and analogue.

Product code: CNV-HDMI-AUDIO+

Capture audio from an HDMI signal to external audio amplifier
Audio format selected with switcher for TV audio, Bitstream, LPCM 7.1CH for Surround
With Jack or TosLink (optical)
HDMI in / out in 4K
Power supply included 5VDC / 1A

Call For Price

0.00 DKK
Tax excluded
On the way in
Quantity

Used where the HDMI screen does not support audio or when using external audio amplifier.
Audio formats: 7.1 channel analog audio out via 4 x 3.5mm female jack or 7.1 channel digital audio out via Optical TosLink
Outputs: 1 x HDMI female, 4 x 3.5 mm female jack, 1 x TosLink (Optical Fiber)
Inputs: 1 x HDMI female
Distance: Up to 3 meters to and from the box
Power supply: 100-240 VAC to 5 V DC, 1 A (power supply included)
Dimensions (H x W x D): 25 x 95 x 82 mm
Cabinet type: Metal

CNV-HDMI-AUDIO+

Data sheet

Forsyning
100-240 VAC til 5 V DC, 2 A (strømforsyning medfølger)
Udgange
1 x HDMI hun, 4 x 3,5mm jack hun, 1 x TosLink (Optisk Fiber)
Indgang
1 x HDMI hun
