VGA passive extends up to 100 meters via network cable. Max. 1280 x 1024, no power connection
Product code: BOOST-VGA+MF
Dimensions 32 x 79 x 71 mm.
Stik1 x RJ45 connector, 1 x DB15HDF (VGA) connector.
Resolution up to 1280 x 1024 pixels
Cable CAT5 ~ 7 UTP cable
Distance up to 100 meters between the transmitter and receiver boxes
No power required as it is built of passive components
BOOST-VGA+MF
2 Items
Data sheet
- Opløsning
- Op til 1280 x 1024
- Stik
- 1 x RJ45 stik, 1 x DB15HDF (VGA) stik.
- Kabel
- CAT5~7 UTP kabel
- Afstand
- Afstand op til 100 meter mellem sender- og modtagerboksene
- Strømforsyning
- Kræver ingen strømforsyning da den er opbygget af passive komponenter
- Dimensioner
- 32 x 79 x 71 mm

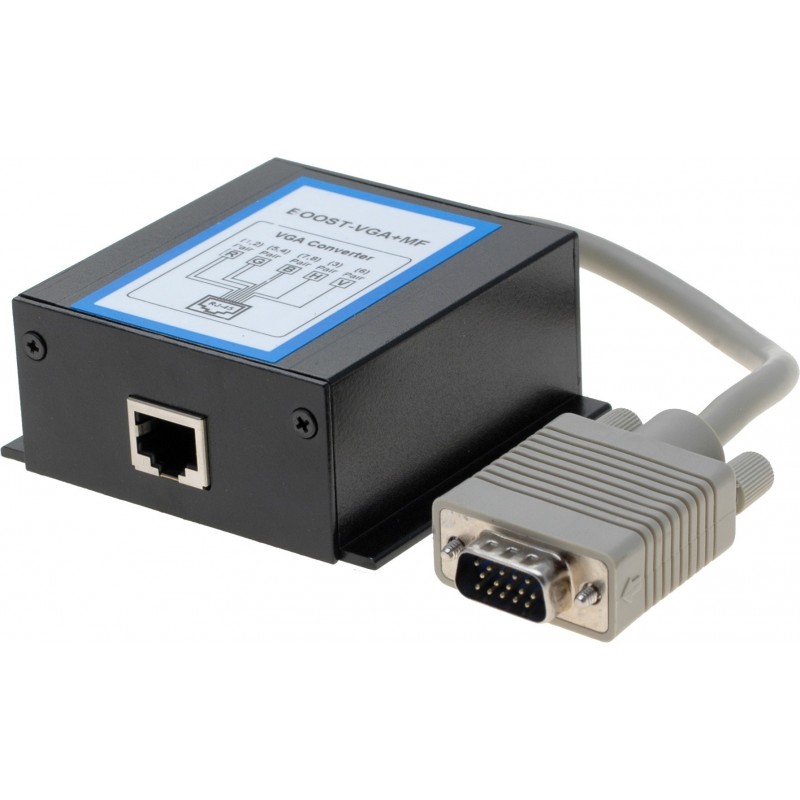

Passive VGA Extender Over Point to Point Network Cable
Complete Set With Sender and Receiver Box
Up to 100m. Just through PDS cable (paired cable) - Do not connect network switch
Max. 1280 x 1024 pixel
Balun principle - unbalanced / balanced
Critical with network cable quality.
Supports only UTP network cables, cat. 6 or better
More noise immunity than active extenders.
No power required
