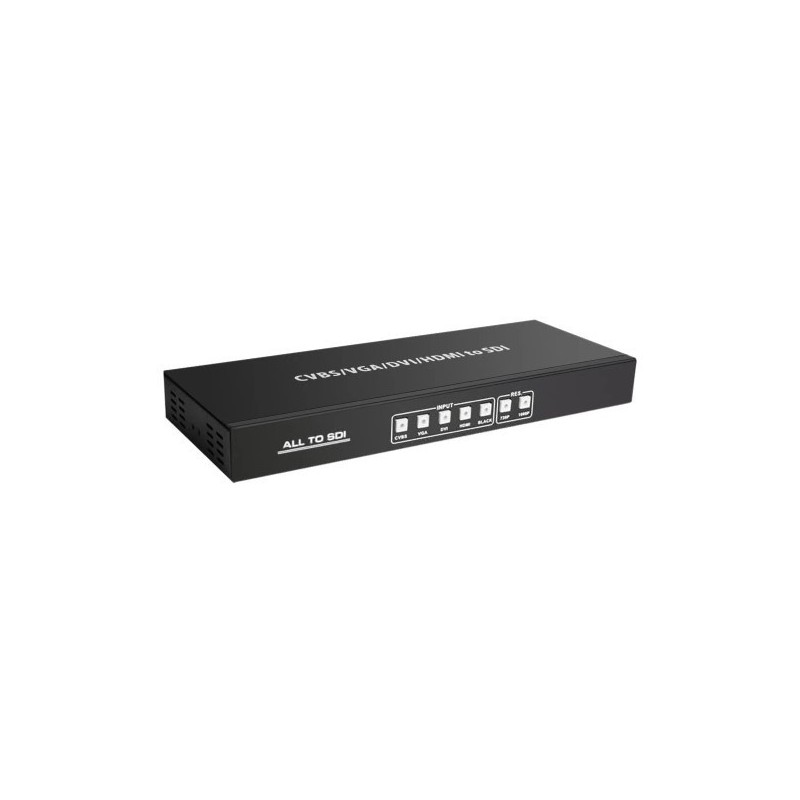

Convert from Composite Video (BNC), VGA, DVI and HDMI to HD-SDI, 3G-SDI
Product code: CNV-SDI-MULTI
SDI scaler convert CVBS VGA DVI HD to HD-SDI 3G-SDI Signal
Everything to SDI Scaler Converter allows you to upscale Composite, VGA , DVI, HD signals for HD Video of SDI formats (HD-SDI SMPTE 292M or 3G-SDI 424m / 425m) and then output to both ports at the same time.
CNV-SDI-MULTI
Data sheet
- Weight
- 866g
- Driftstemperatur
- 0˚C ~ 40˚C / 32˚F ~ 104˚F
- Strømforbrug
- 5W
- Input
- 12V
Multi format Video format Convert to SDI
Video In: HDMI, DVI, VGA and Composite Video (BNC / RCA)
2 x SDI output simultaneously
SDI output up to 100 meters at 3G- SDI or 200 meters at HD-SDI
Scales input signal for HD-SDI or 3G-SDI
HD input: VGA @ 60Hz ~ SXGA @ 60Hz 480i ~ 1080p @ 60Hz
VGA / DVI Input Timing: VGA @ 60Hz ~ 1920 × 1080 @ 60Hz.
Composite video input: NTSC, Pal, Secam
Supports black screen Signal output.
12VDC / 2.5A Power supply included
Size: 288 x 110 x 32 mm
