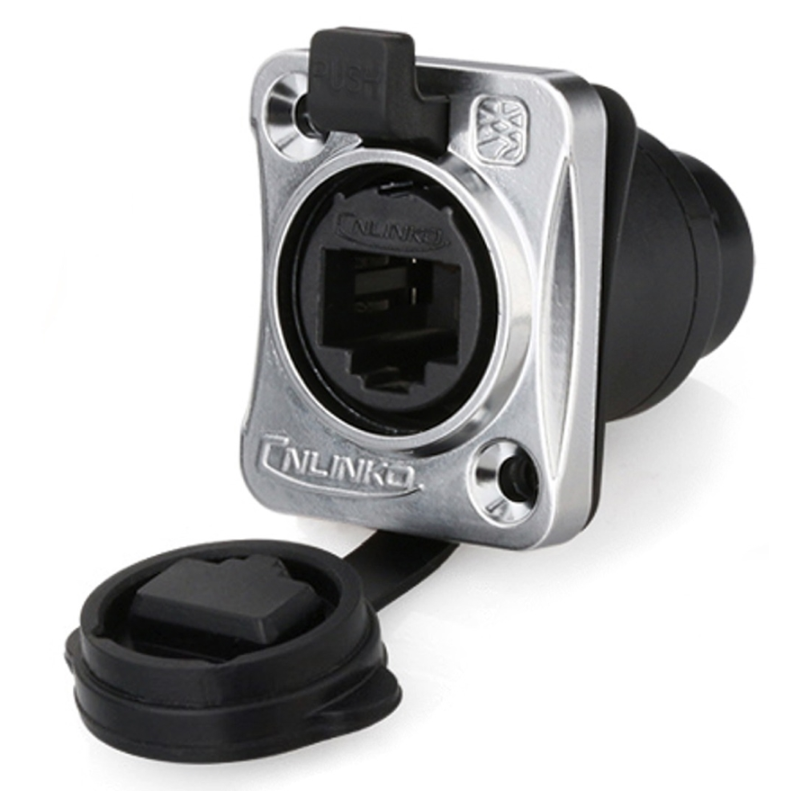

Waterproof IP65 / 67 RJ45 Connector (Female), With network ports at both ends
Product code: RJ45WP-F
RJ45 connector with connection. Connects 26-24 AWG cable. Rated at 1000V and 1.5A. It has a push / pull locking system and is used for industrial Ethernet in audio equipment, stage equipment, DMX lighting and other network applications. RJ45 connectors. Connects 26-24 AWG cable. Rated at 1000V and 1.5A. It has a push / pull locking system and is used for industrial Ethernet in audio equipment, stage equipment, DMX lighting and other network applications.
RJ45WP-F
25 Items
Data sheet
- Compositions
- Cobber (Zinc Alloy)
- Driftstemperatur
- -40 C to 80
- Forbindelse
- Push/pull lås
- IP-Tæthed
- IP65/67
- Dimensioner
- 33mm H x 27.7mm W x 42mm
- Diameter
- 5.5-7mm
- Volt
- op til 1000V, 1.5A
- Data
- 10GB/s datatransfer rate
- Certifications
- CE, ROHS, CCC, ISO9001: 2008 Standard.
IP65/IP67 vandtæt og støvtæt RJ45 stik (Han)
op til 1000V og 1.5A
Push/pull låsesystem
UL certificeret
Driftstemperatur: -40°c~80°c
Certifikater: CE, ROHS, CCC, ISO9001: 2008 Standard.
Anti vibration
Dimensioner: 71mm x 22.5mm
Diameter: 5.5-7mm
Kontakt modstand: <30mOhm
Insulation modstand > 500MOhm
Durability: 500 times
Materiale: Zinc Alloy
