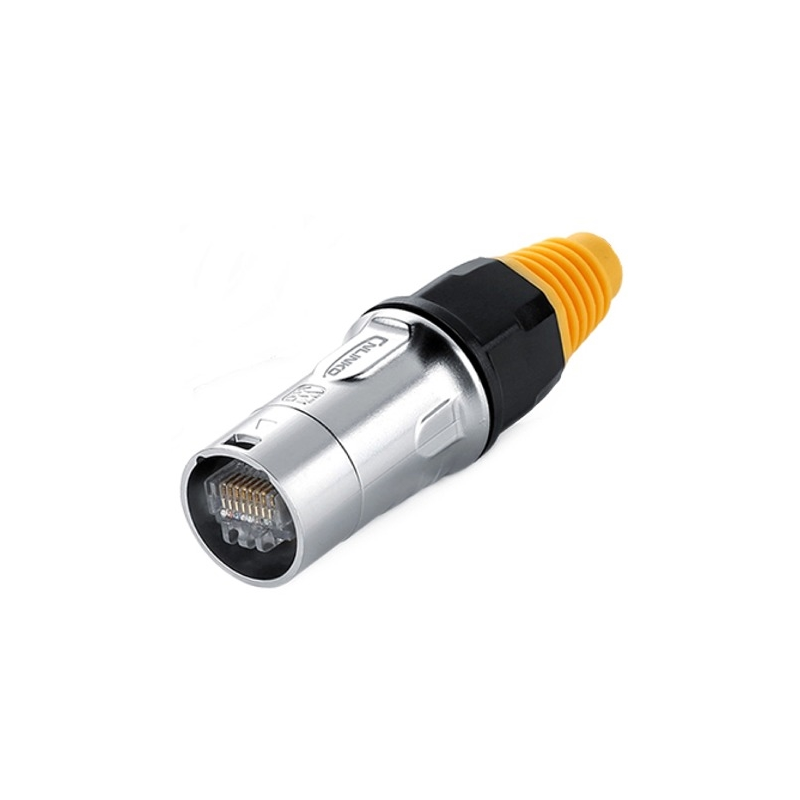

Waterproof IP67 RJ45 connector (male) for UTP cable, metal-housing. Cable connector with lock RJ45WP-F chassis contact.

Product code: RJ45WP-M

IP67 Splash and dustproof housing for UTP cable
Terminate RJ45 cable after essembly of house
Cable connector for chassis contact RJ45WP-F
for push / pull locking system
UL certified
Operating temperature: -40 - +80°C
Certificates: CE, RoHS, CCC, ISO9001: 2008 Standard.
Anti Vibrational
Dimensions: 71mm x 22.5 mm
for cable diameter: 5.5-7 mm
Contact resistance: Less than 30m ohm
insulation resistance: greater than 500M ohm
Material: Zinc Alloy

92.00 DKK
Tax excluded
Physically in stock
Quantity

IP67 RJ45 house for UTP cable and retrofitted RJ45 Han connector. The house is prepared for push / pull locking system and used for industrial Ethernet environment and other network applications. Unshielded RJ45 connector retrofitted on cable after the house is assembled.

RJ45WP-M
24 Items

Data sheet

Compositions
Cobber (Zinc Alloy)
Driftstemperatur
-40 C to 80
Forbindelse
Push/pull lås
IP-Tæthed
IP65/67
Dimensioner
71mm x 22.5mm
Diameter
5.5-7mm
Volt
op til 1000V, 1.5A
Data
10GB/s datatransfer rate
Certifications
CE, ROHS, CCC, ISO9001: 2008 Standard.
