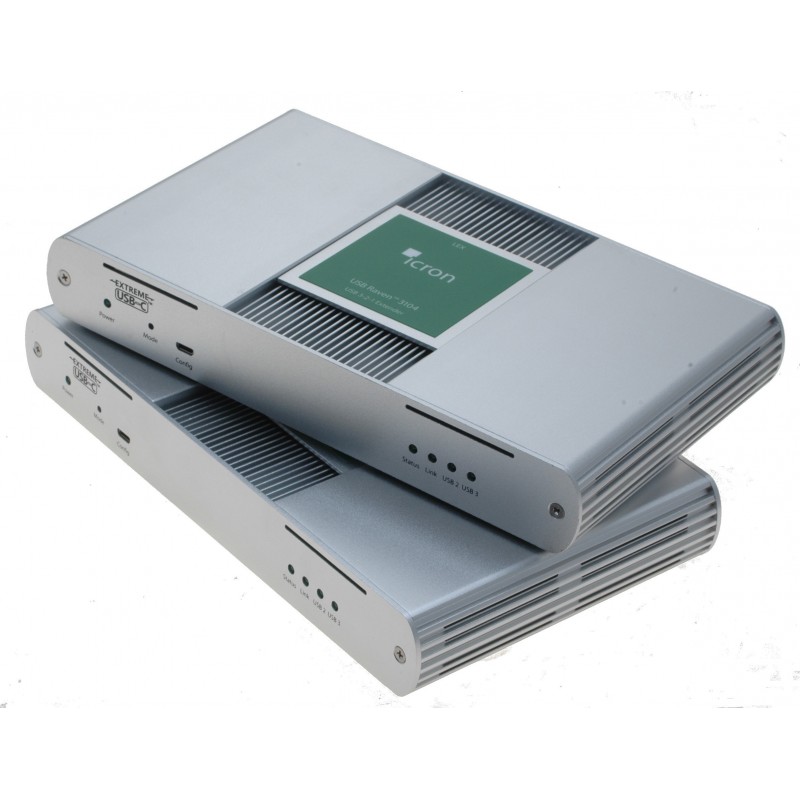

4 Port USB 3.1 Extender up to 100m above the RJ45 cable. 24VDC supply
Product code: BOOST-USB100-3.1
BOOST USB100-3.1 USB extender pushes the limits of USB extension. USB extender 3-2-1 gives you a 4-port USB 3.1 of CAT6a solution that can extend USB up to 100m. As an industry first, this extender backward compatible with USB 2.0 and 1.1 devices to simultaneously use full 5 GB bandwidth.
In addition, BOOST USB100-3.1 an Ethernet pass-through to connect to the network enabled devices or for use with existing infrastructure without losing LAN connection. Do this suitable for remote storage, security and surveillance and video matrix systems.
With Icrons patented technology ExtremeUSB-C provides USB 3-2-1 BOOST USB100-3.1 transparent USB extension, true plug-and-play functionality and works with all major operating systems (Windows, MacOS and Linux).
BOOST-USB100-3.1
Data sheet
- Driftstemperatur
- 0-50°
- Montering
- Mounting: 4 surface mounting holes or optional mounting kit available
- Dimensioner
- 137.3mm x 232.1mm x 33.0mm
- Materiale
- Enclosure Material: Silver anodized aluminium
- Hastighed
- USB 3.1: up to 5 Gbps USB 2.0: up to 480 Mbps USB 1.1: up to 12 Mbps
USB 3.0, 2.0, 1.1
Max. Distance 100m
Transmission media CAT6a / 7
power required by both REX LEX
USB 3.1A
USB port 4 (built-HUB)
USB Review 5 Gbps
Power requirements 24V DC, 1A
