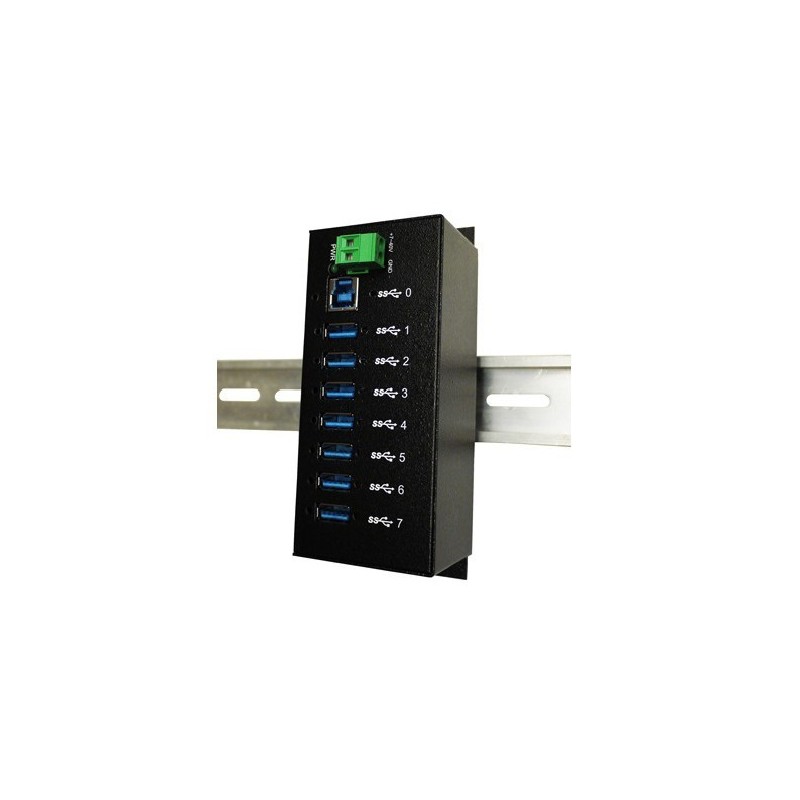

7 ports Industrial USB3 HUB for DIN mounting (7 - 48VDC)

- Compliant with USB Specification Revision 3.0
- Metal Case with DIN RAIL Mounting Kit for Industrial Critical Applications
- Built-in RISC-like USB3.0 Hub Controller
- Provides 7 Downstream USB3.0 Facing Ports
- Supports 5Gbps (Super-speed), 480Mbps (High-speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
- Supports Surge and 15KV ESD Protection for Each Port
- Supports +7~48V DC Wide Range Self-power Input
- Multi Transaction Translators (TT) per Hub
- Supports Wide Range Self-power Input
- Support USB Battery Charging: CDP and DCP modes
- Supports USB Screw-Lock Cable Mechanism

System:
For Systems with USB3.0, USB2.0, or USB1.1 Ports USB3.0 ports

Provides 7 USB downstream ports which managing up to 5Gbps:
Compliant with USB Specifications 3.0
Provides 7 USB3.0 Downstream Facing Ports
Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
Supports Multi Transaction Translators per Hub
Supports Wide Range Input Self-power Mode from Terminal Blocks
Supports USB Screw-lock Cable Mechanism
Supports +7~48V DC Wide Range Self-power Input
Supports 15KV ESD Protection for Each Port.

USB Devices:
Supports keyboard, mouse, monitor, scanner,
printer, PC Camera, telephone, DVD drive,
joystick, virtual reality helmet, modem, PBX and
many more USB devices

I/O Hardware:
Supports 7 external USB3.0 Type-A connectors and 1 USB3.0 Type-B Upstream connector.
Supports a 2-pin Terminal Block Connector for external power input from AC adapter

Environmental:
Operating Temp.: 0 to 70C (32 to 158F)
Storage Temp: -20 to 85C (-4 to 185F)
Operating Humidity: 5 to 95% RH

Dimensions:
4.80”(L)x2.16”(W)x1.71”(H) (12.20x5.50x4.35 cm)
