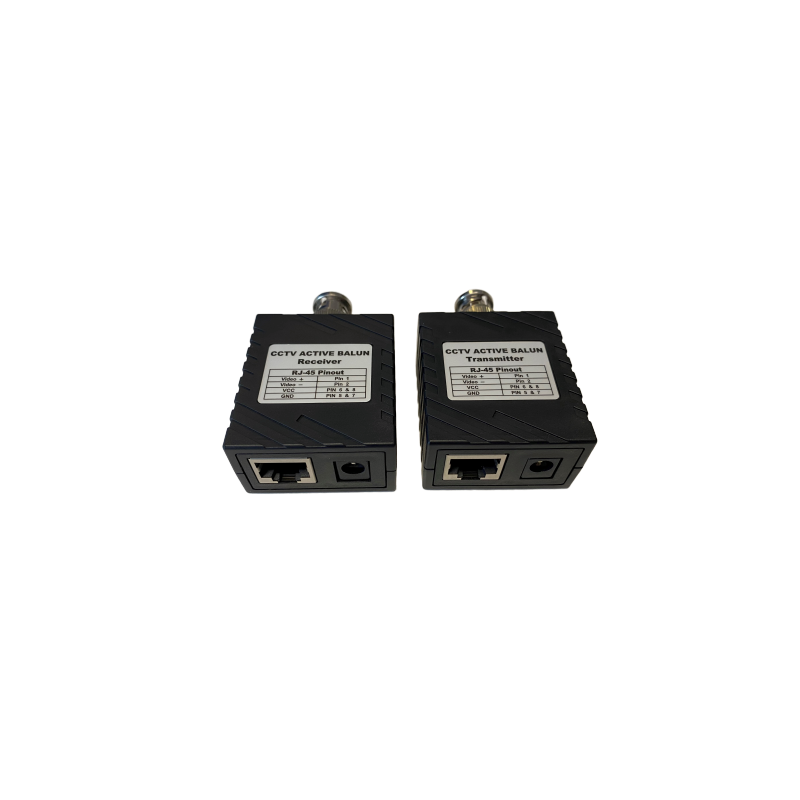

Video of BNC, 1 x video up to 1500 m, set with 2
Product code: KAM-BNC-RJ45
Contains 2 modules for the transfer of up to 4 analog video signals from, for example. surveillance cameras up to 600 meters. The transmitter and receiver connected to a standard just completed UTP / STP network cable with RJ45 connectors. 4 the video signals entering from the BNC connector at one end and pulled out via the corresponding 4 BNC connector at the other end. 4 separate thus transferred digital video signals via a network cable - with virtually no loss of quality.
OA.
KAM-BNC-RJ45
1 Item
Data sheet
- Tilbehør
- sæt med 2 bokse
- Kabel
- 24 AWG or lower solid copper UTP：Impedance：100 ohms at 1MHz Max. Capacitance：20 pf/ft
- Båndbredde
- DC to 8MHz
- Strømforsyning
- 12VDC, 60mA. PSU medfølger ikke
- Dimensioner
- 22 x 78 x 75 mm
- I/O
- 1 x BNC han pr. boks, 1 x RJ45 pr. boks.
Bandwidth: DC to 8MHz
Impendans: BNC male 75 Ohm
RJ45: 100hm
Cable UTP 24 AWG or less
Maximum distance: 1500 meters
Operating temperature: 0 - 55 C | 1 x BNC male connectors per box | 1 x RJ45 female connectors per box
Supply voltage: 12V DC / 60mA (supplied)
Dimensions: 22 x 78 x 75 mm
