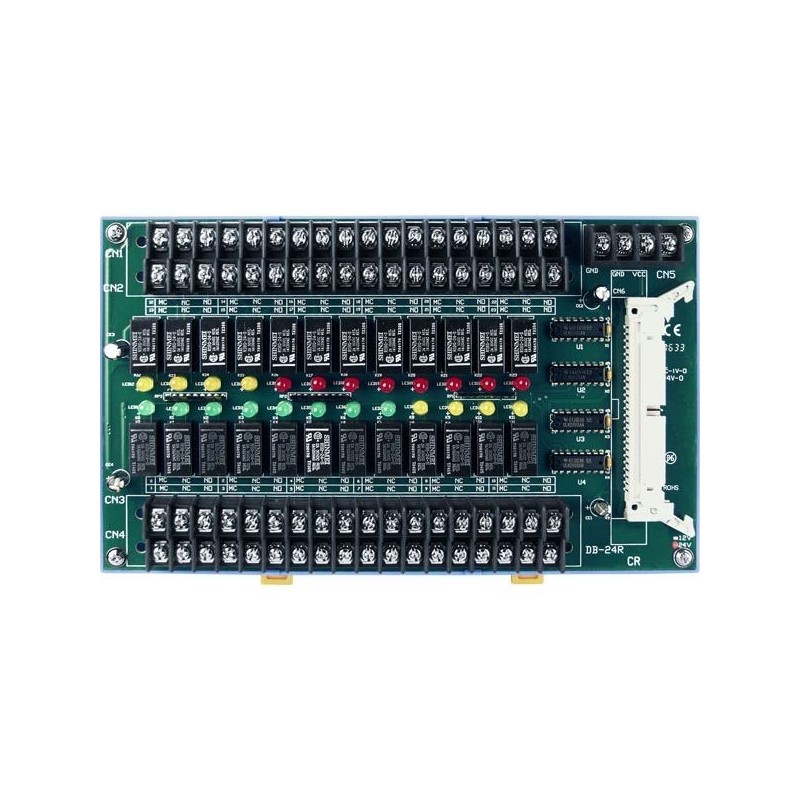

Terminal cards with 24 relay outputs, 250VAC / 1A, 24VDC / 1A, controlled from TTL 5VDC, logic 50 pins IDC

Product code: TERM24R50

24 pcs shift relay (COM, NC, NO) 250VAC and 24VDC 1Amp - 24 LEDs show relay position
Control of TTL signal (+ 5VDC is relay ON)
Supplied with +24 VDC externally
Plugs: IDC50
Dimensions: 130 x 220 mm (W x D)

  • Add to Comparison Remove from Comparison
    • 800.00 DKK
    Tax excluded
    Physically in stock
    Quantity

    24 type skifte 250 VAC 1 A
    24 lysdioder viser relæstilling
    Forsynes med +24 VDC eksternt
    Stik: IDC50
    Mål: 130 x 220 mm (B x D)


    TERM24R50
