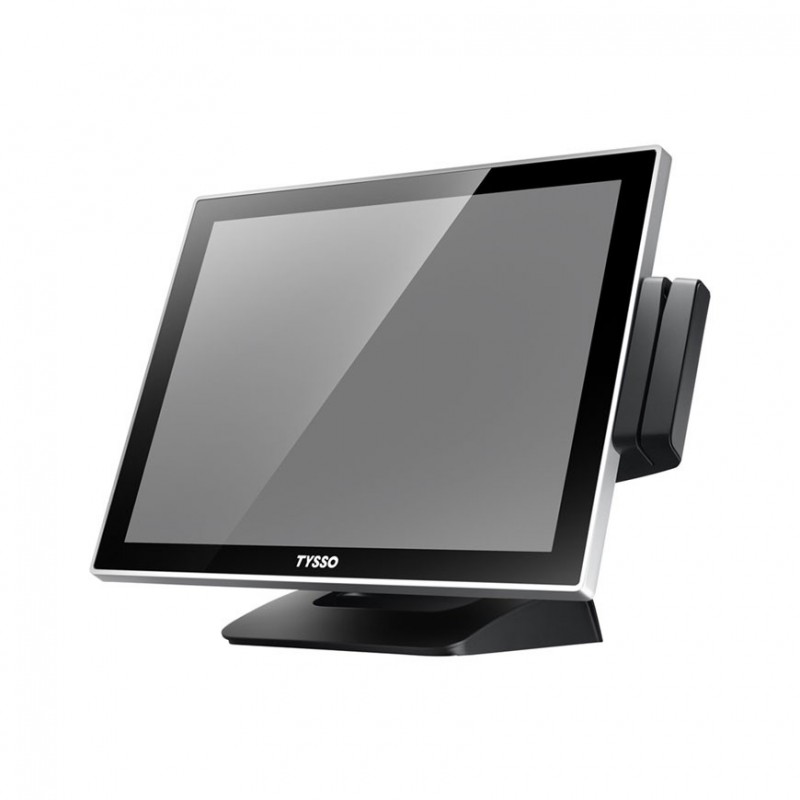

Fanless 15″ Touch POS Terminal, 2.0GHz, 12VDC
Product code: IPP-POS15
The IPP-POS15 is a Space-Saving touchscreen POS terminal which suits a variety of market segments. IPP-POS15 consists of low power processors and Fanless Cooling technology, which minimizes noise and heat. That make IPP-POS15 suitable for locations where loud equipment is unacceptable.
The modular-designed I-Button and magnetic stripe card reader (MSR) module can integrate seamlessly with the terminal and is easy to detach. This helps the user install and replace without effort.
Multi-Functional, space saving, Noise-Free and efficient, IPP-POS15 is your ideal choice of Point of Sale systems.
IPP-POS15
Data sheet
- Weight
- 5 kg
- CPU
- Celeron J1900
- Driftstemperatur
- 0°C ~ 40°C
- Porte
- 4 x COM (DB9, with power output, +5VDC/+12VDC, selectable by Jumper) 2 x COM (Internal, reserved for VFD Customer Display and MSR)
- Lysstyrke
- 300 nits
- OS SUPPORT
- POS Ready 2009, POS Ready 7, Windows 7, Windows 8.1, Windows 10, Linux
- Output
- 1 x 12VDC Jack for Customer Display or 2nd Display
- Hukommelse
- DDR3L SO-DIMM 1333MHz x 2 (max: 8GB) (medfølger ikke)
- Lyd
- 1 x Internal Speaker
- Skærm
- 15"
- Temperatur
- -20°C ~ 55°C
- Ethernet
- 1 x RJ-45 Gigabit LAN
- USB
- 5 x USB 2.0 (External, 4 x bottom/ 1 x side)
- Strømforsyning
- 12VDC 60W
- Dimensioner
- 355 x 302 x 204 mm
- Grafik
- Intel® HD Graphics
- VGA
- 1 x DB-15, Female
- Touch
- 5-Wire Resistive Type or Projective Capacitive
- Storage
- 1 x 2.5” SATA, 1 x mSATA
- Certifications
- FCC / CE / WEEE / RoHS
Fanless
4 x COM (DB9, with power output, +5VDC/+12VDC, selectable by Jumper)
2 x COM (Internal, reserved for VFD Customer Display and MSR)
1 x DB25 Parallel Port
5 x USB 2.0 (External, 4 x bottom/ 1 x side)
RJ-45 Gigabit LAN
VGA
1 x 12VDC (Output) Jack for Customer Display or 2nd Display
1 x RJ-11, +12/+24 VDC (Cash drawer)
+12VDC 60W, 4-pin Connector with Lock
355 x 302 x 204 mm
