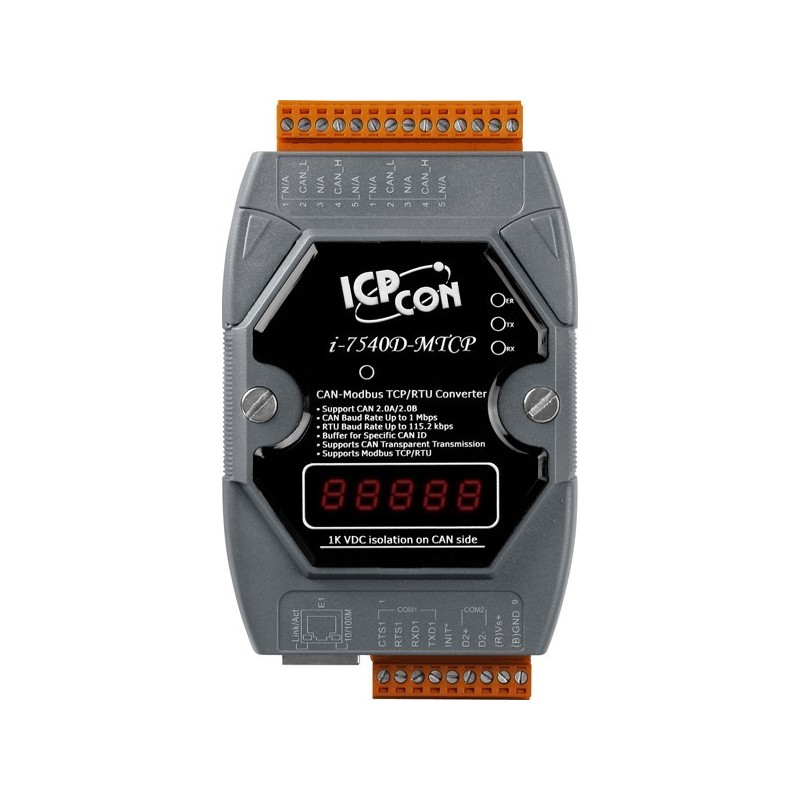

Intelligent CANBUS for 10/100 Base TX Ethernet / Modbus TCP / Modbus RTU Convert

Product code: M485-ETH-CAN-MTCP

Intelligent CAN to Modbus TCP / RTU Convert
80186, 80MHz CPU
10/100 Base-TX Ethernet controller
TCP / IP protocol
Supports both CAN-2.0A and 2.0B.
Max 1M bps for CAN and 115.2kbps for RS-232 RS-485
LED display
Software configuration for CAN and RS-232
Operating temperature: -25 - +75°C
DIN rail mounting

  • Add to Comparison Remove from Comparison
    • 2,902.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    Convert is a solution that activates CAN network two integrated into the Internet / Ethernet or Modbus TCP / RTU, where Remote screen and control is possible.

    It controls network-based communication and makes a transparent CAN-based program interface available The user. It thus is implemented in a number of applications.

    M485-ETH-CAN-MTCP
    1 Item

    Data sheet

    Forsyning
    Unregulated +10 ~ +30 VDC
    Driftstemperatur
    -25 ~ 75 ℃
    Stik
    CANBUS: Connector 2-pin screwed terminal block (CAN_L, CAN_H)
    Porte
    COM 1 RS-232 COM 1 Connector 5-pin screwed terminal block (TxD, RxD, RTS, CTS, GND ) COM 2 RS-485 (Self-turner inside) COM 2 Connector 2-pin screwed terminal block (DATA+, DATA-)
    Montering
    DIN-Rail
    Ethernet
    10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX) Connector RJ-45 with LED indicator
    Isolation
    1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
    Dimensioner
    72mm x 122mm x 33mm (W x L x H)
    RAID niveau
    CAN, Ethernet, Modbus RTU, Modbus TCP
    Other
    Terminator Resistor Jumper for 120 Ω terminator resistor Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
