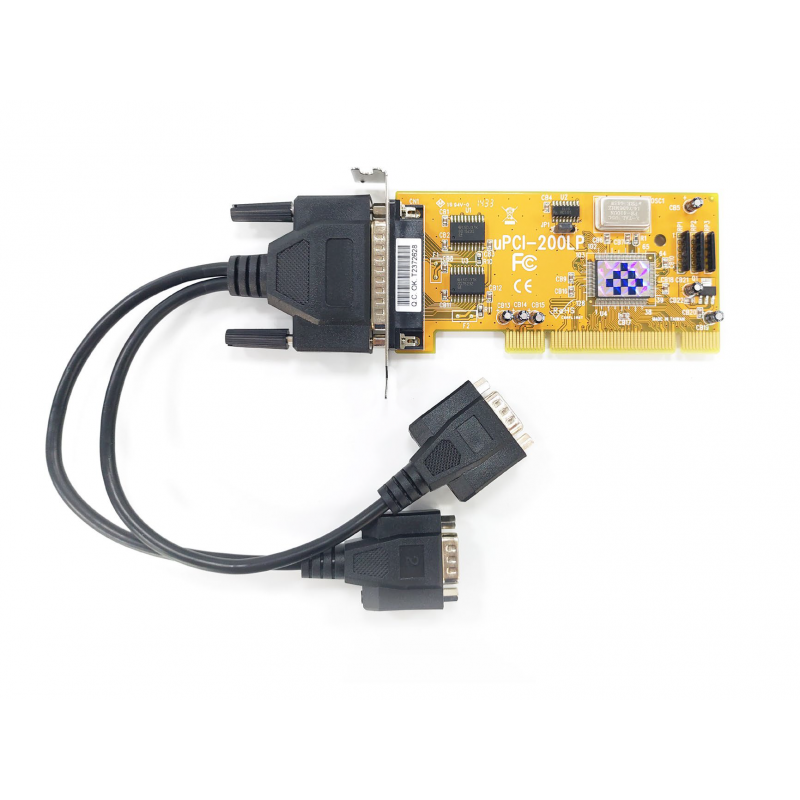

2 x RS232 serial ports for PCI. Plug & play, high and low back plate, TITAN PCI-200LP UPCI Vscom

Product code: SER2PCI3V-L

2 x RS232 serial ports with plug & amp; play
1 x TITAN BSP9216B (chipset)
1 x DB25 male connector on the card
1 x DB25 female for two DB9 male adapter cables included
Bus: universal PCI (5V and 3.3V) 32 bit 33MHz
RS232 signal: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Max. bitrate: 921.6kbps
Each port with 16 bit FIFO for transmit & amp; review
IS support: Windows, Linux
0 ° C to 60 ° C

  • Add to Comparison Remove from Comparison
    • 150.00 DKK
    Tax excluded
    Physically in stock
    Quantity

    SER2PCI3V-L & nbsp; serial I / O cards offer two independent RS-232 serial ports. This I / O board supports both 3.3V and 5V PCI bus, and it is compatible with 32-bit PCI, 64-bit PCI and PCI-X bus. All serial ports are built by 16550A-compatible UARTS with 16-byte FIFO. A rich set of driver options is configured via the Device Manager in Windows. The drivers allow to configure the serial ports for a bit-rate of up to 921,600 bps.

    SER2PCI3V-L
    40 Items

    Data sheet

    Stik
    2 x DB9 han (blæksprutte)
    Porte
    2
    Chipset
    TITAN BSP9216B
    Baudrate
    Maks. 921,6 Kbit/sekund
    Spænding
    3,3 og 5 V. kompatibel med PCI-X
    Drivere
    DOS, Windows 98, NT, 2000, XP, Win7, 2003, Linux og Vista
    FIFO
    16 bytes
    UART
    16C550
    I/O
    Plug and Play
    RAID niveau
    Universal PCI (5V and 3.3V) 32 bit 33MHz
