Wireless RS232 connection via Bluetooth - as a set. Up to 100 meters between the two RS232 ports.
Product code: BLUETOOTH-RS232+
Wireless transfer of data between serial ports - up to 1,000 meters

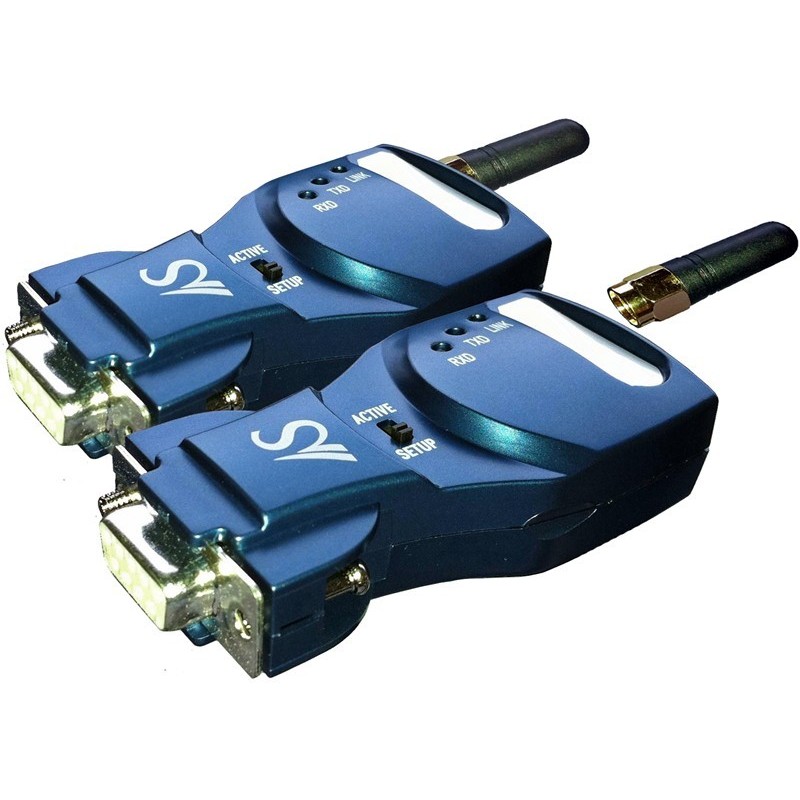

BLUETOOTH SER + is a set of 2 adapters that plugs into the serial port, for example. a plotter and a PC.
ættet creates an operating system transparent connection via a Bluetooth radio signal.
range is up to 1,000 meters with directional antennas (not included) and no driver required.
2 adapters DB9 female connector.
Serial Communications Option: 1200 bps - 115,200 bps, full duplex, to 8 data bits, even / odd / no parity, 2.1 stop bits, RTS / CTS ON / OFF DTR / DSR / DCD loopback .
Bluetooth ver. 2.0 + EDR Class 1 79 channels wireless transfer of data between serial ports - up to 1,000 meters
BLUETOOTH SER + supports multi-connection. 1 master to 4 slaves.
Rev: LO
BLUETOOTH-RS232+
1 Item
Data sheet
- Forsyning
- Får strøm via medfølgende USB kabel eller 230 VAC adapter. 5 – 12 VDC (maks. 80 mA v/5 VDC)
- OS SUPPORT
- Uafhængig af styresystem, kræver ingen drivere
- Rækkevidde
- Op til 100 meters rækkevidde ved frit sigte og medfølgende antenner. Op til 1.000 meter ved anvendelse af større retningsbestemt antenne.
- Frekvens
- Frekvensbånd: 2.402 ~ 2.480 MHz, frekvens hop: 1.600 gange/sek.
Wireless RS232 link between two RS232 ports.
Only available as a set (2 pcs.).
BT Ver 2.0 + EDR Class1
Up to 100meters with accompanying antennas by line-of-sight
Up to 1km with greater external antennas (optional)
automatic connection establishment at power on
with frequency hopping to avoid interference
Baud rate: 1200 - 115.200kbps, 8 data bits, the O / E / No, 1/2 stop bits
Setup baud rate, etc. with Hyper Terminal or the like.
RTS / CTS on / off - DTR / DSR / DCD loop-back
Supports multi-connection: 1 master 4 slaves
Supply voltage: 5 - 12VDC / 80mA
