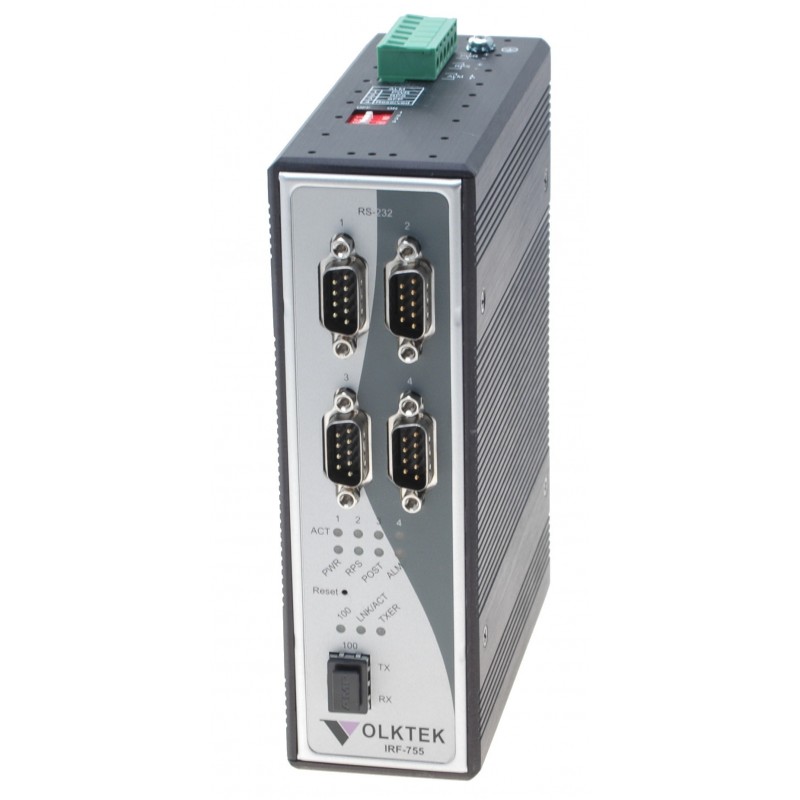

4 Ports RS232 Extender over fiber cable 1200 - 115Kbps, 4 x DB9 male connector. 100Mbit SFP Multi Mode or Single Mode.
Product code: BOOST-4RS232-FIBER
Boost-4RS232 fiber connect up to 4 devices with serial ports via light leader over distances up to 2 km, 30 km or 60 km to other RS232 units.
Can be configured with a built-in web server .
Ideal for plants where parts of the network use light guide cable. See our other equipment with fiber interface (network card, switches, media converters, etc.) Typical applications available in industrial environments, where electrical disturbances are critical and where there must be a galvanic connection between the local and remote area.
Serial ports: Fire RS232 ports with speeds from 1200 bps for 115 Kbps
Databit: 7/8, Stop Bit: 1/2
Parity: Straight / odd / No
Flow Control: RTS / CTS, Xon / Xoff < Br> Signals: RS232: TXD, RXD, RTS, CTS, DSR, DSR
Network: 100Base-FX Via LC Light guide cable
protocols: TCP / IP, UDP, HTTP, SNMP Read, telnet, DHCP, ICMP, BootP, ARP
Connector: Serial Ports: RS232: 4 x DB9 He
Lighter: SFP Slot for SFP Transceiver (LC Fiber)
Supply: Screw terminal block with extra input for redundant supply
Cabinet: 162 x 50 x 120 mm (H x B x d) - w / Holder for your shine
display: 3 LEDs Displays TX / RX, Network and System Status
Power Supply: Requires 9 - 32 VDC Max. 6 watts via screw terminals (supplied. Not )
Use DC12V / 1A-RQ
CPU: 16 Bit CPU, 100 MHz
Memory: 512 KB RAM, 512 KB Flash and 512 Bytes EEPROM
Watchdog Timer: 1.34 sec. Hours for automatic reset
BOOST-4RS232-FIBER
7 Items
4 COM ports via optical fiber cable
point to point or pount to 4 points
4 x RS232 ports up to 2km with multi mode cable
4 x RS232 ports up to 20km with single mode cable
Buy 100Mbit SFP Module (Multi Mode or Single Mode)
1 x 100 Mbit SFP for LC Duplex Fiber cable
4 x RS232 DB9 male connector
Setup via built-in Web server
62 x 50 x 120 mm
DIN fittings
Display 3 LEDs Displays TX / RX, Network and System Status
Supply voltage: 9 - 32VDC Redundant (not supplied)
