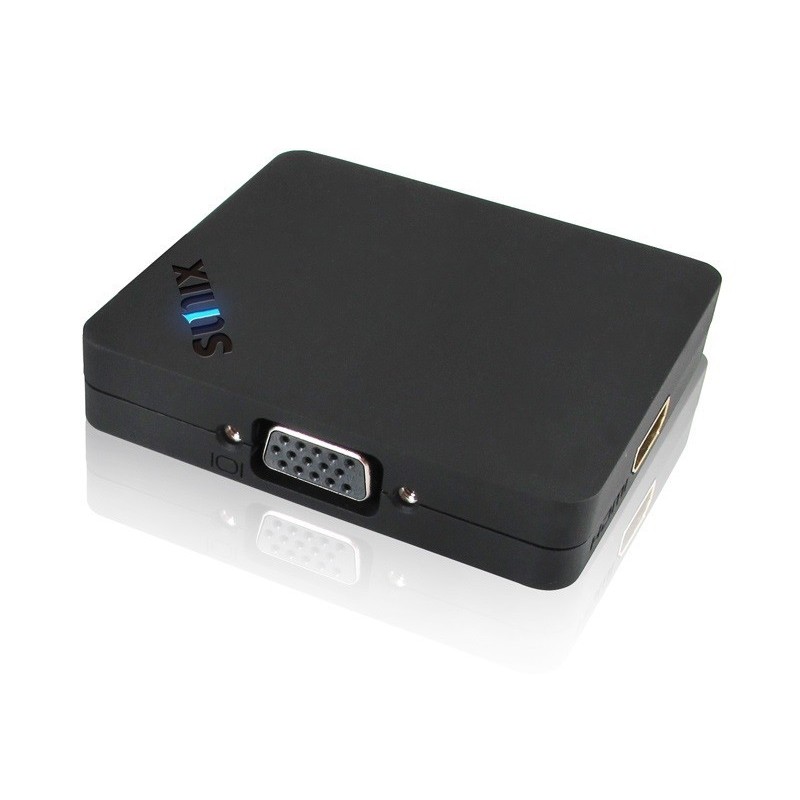

3 ports Mini DisplayPort for 1xVGA, 1xHDMI and 1xDP
Product code: DP3MULTI+
Split a DisplayPort image into respectively. VGA, HDMI and DisplayPort outputs, all 3 active at the same time. The image on each of the 3 screens can be either copy or extended desktop. With extended desktop, the total maximum resolution for 3 screens is 2560 x 1600 points. If two DP3MULTI + are connected to each DP output on a PC, the resolution can be up to 5760 x 2160 dots distributed on 6 screens.
DP3MULTI+
2 Items
Data sheet
- Udgange
- 1 x DisplayPort hun, 1 x HDMI hun, 1 x DB15HD hun VGA
- Opløsning
- Op til 2560 x 1600 v. 60Hz
- Standarder
- DP v1.2a/1.1a, HDMI v1.4a, VESA DDM, EDID v1.4 og HDCP v1.3
- OS SUPPORT
- Understøtter Windows, Mac og Linux. Hot-Plug uden konfiguration
- Båndbredde
- 1,62 Gbps (RBR), 2,7 Gbps (HBR) og 5,4 Gbps (HBR2)
- Afstand
- Op til 5 meter til boksen
- Strømforsyning
- Gennem mini DisplayPort stikket
- Dimensioner
- 14 x 54 x 70 mm (H x B x D)
- Indgang
- 1 x mini DisplayPort hun
From 1 Mini DisplayPort to 3 outputs with VGA, HDMI and DisplayPort
Same picture on the 3 different monitors
Input: up to 2560 x 1600 dots
Power supply retrieved from Mini DisplayPort connector
Cable from DP to Mini DP included
