4 ports splitter SDI, SD-SDI, HD-SDI, 3G-SDI. 1 x BNC inputs and 4 x BNC output. Same output image. 5VDC

Product code: SDI4MULTI-G

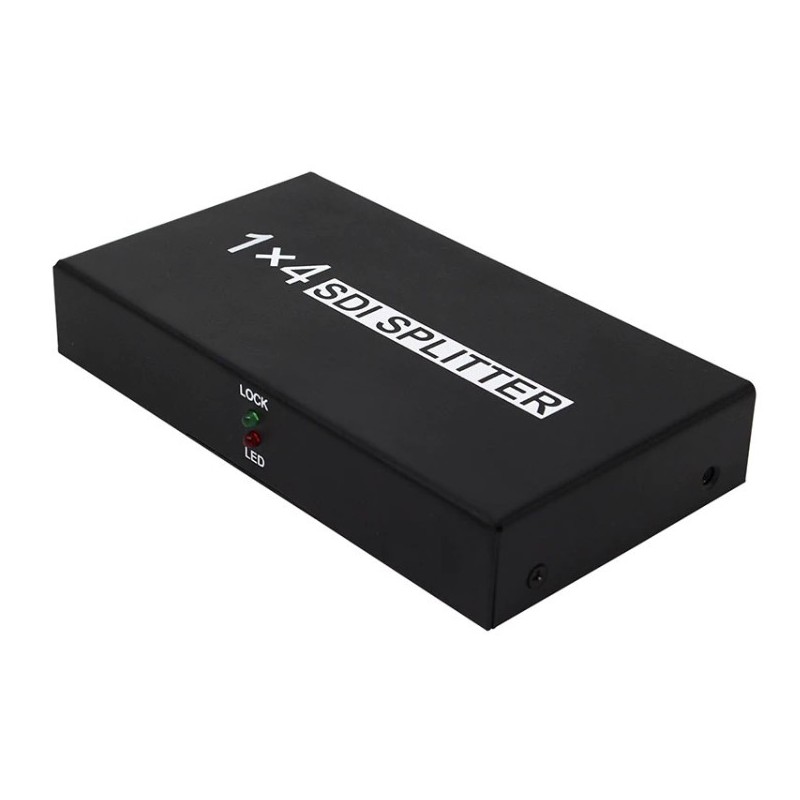

4 Port SDI multimedia splitter
same image on the four monitors up to 100 meters
Compatible with SD-SDI, HD-SDI and 3D SDI to 5 x BNC female
1 x BNC - SDI input to 4 x BNC - SDI output
SD 525i and 625i
HD 720p 24/25/30/50/60Hz, HD 1080i 50/60Hz
HD 1080p 24/25/30/50/60Hz
Supply voltage: 5VDC PSU included
Dimensions: 130 x 77 x 24 mm

  • Add to Comparison Remove from Comparison
    • 1,207.00 DKK
    Tax excluded
    On the way in
    Quantity

    Serial Digital Interface is a standard used to "broadcast". Now comes cameras with standard and they are particularly suitable where you want to replace the old analog cameras with new Megapixel cameras, where you can keep existing coax cables

    SDI4MULTI-G

    Data sheet

    Udgange
    4 x BNC hun, indgange: 1 x BNC hun
    Opløsning
    Op til 1920 x 1080i/p ved 60 Hz
    Driftstemperatur
    0~+60 °
    Kompatibilitet
    SD-SDI, HD-SDI og 3G-SDI
    Output
    SDI signal output amplitude: 800mVp-p
    Afstand
    p til 100 m kabellængde v. 3G-SDI (2,97 Gb/s) på ind- og udgangene
    Strømforsyning
    Forsynes af medfølgende 5 VDC 1 A netadapter
    Dimensioner
    130 x 77 x 24mm (L x W x H)
    Other
    Power consumption: 250mA (DC 5V)
