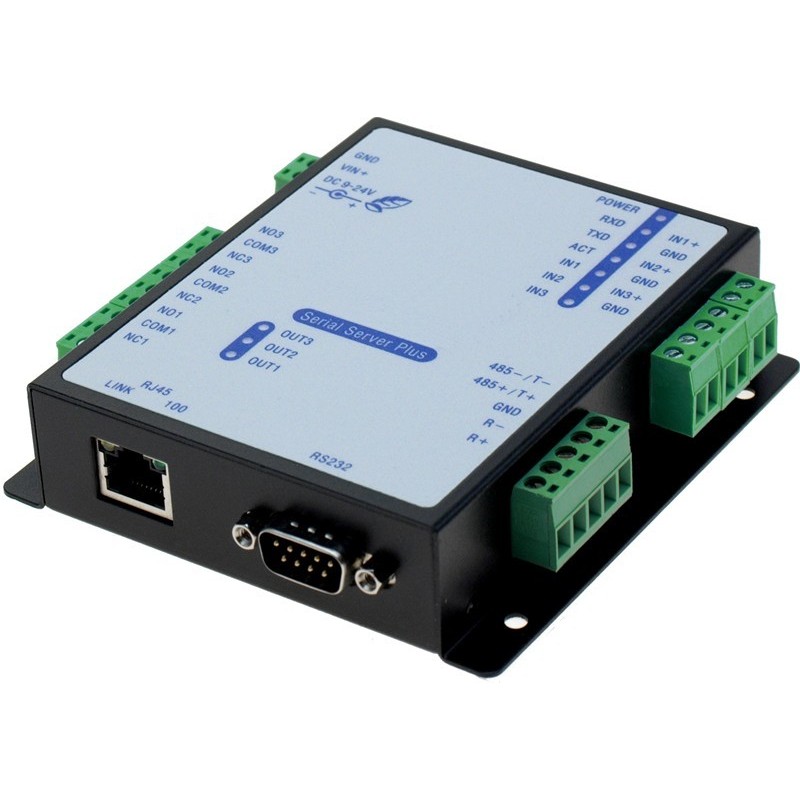

1 PORT SERIAL PORT SERVER RS232 / 422/485 with 3 x digital input, 3 x relay. 1 x RJ45. 9 - 24VDC.

Product code: ETH1SER-R3I3+

External COM port and DI / DO via Ethernet and Internet
built-in web server
3 x Shift relays Expanses Max. 30 VDC 1A
3 x digital contact inputs
1 x RS232 (DB9 Male), RS422 or RS485 (screw terminal)
1 x Ethernet 10 / 100Mbit
Power supply from 9 to 24 VDC

  • Add to Comparison Remove from Comparison
    • 1,671.00 DKK
    Tax excluded
    Physically in stock
    Quantity

    Eth1ser-R3I3 + has also 3 relay outputs and 3 digital inputs in addition to a RS232 / 422/485 port. Eth1SER-R3I3 + has a built-in web server so that it can be set up with an Alm. Web browser. Eth1SER-R3I3 + has a serial port that can be coupled as RS232 or RS422 / 485 as well as 3 relay outputs and 3 inputs that can be controlled and read with simple commands. Includes a simple Windows application that automatically finds all Eth1SER-R3I3 + on the network so that they can be set to a Valfritt IP address. There are built-in web server for easy setup - access protected with password. E-mail can automatically be shipped when an input or output changes status.

    ETH1SER-R3I3+
    7 Items

    Data sheet

    CPU
    16 bit CPU, 100 MHz
    Udgange
    3 relæer: Maks. 30 VDC 1 A type C skifte
    Kabinet
    Stålkabinet i format 22 x 67 x 93 mm (H x B x D)
    Driftstemperatur
    0 – 55 °C
    Stik
    DB9M til RS232 og skrueterminaler til RS422/485. 1 x RJ45 til Ethernet. Spændingsforsyning: 1 x 5,5 mm DC jackstik (hun) til medfølgende 220 VAC adapter eller via skrueterminal. Skrueterminaler til relæudgange og isolerede digitale indgange
    Porte
    En port, der kan bruges som RS232 eller RS422/485, 1200 bps – 230,4 Kbps
    Netværk
    1 x 10/100 Mbit Ethernet
    Hukommelse
    2MB RAM, 256 KB ROM
    Skærm
    9 lysdioder viser Tx, Rx, netværks- og systemstatus samt status på de digitale indgange og relæ udgangene
    Strømforsyning
    Kræver 9 - 24 VDC maks. 500 mA (ustabiliseret), netadapter medfølger
    Signaler
    RS232: Rx , Tx , RTS , CTS , DTR , DSR og DCD. RS422: Rx+/- , Tx+/- , (4 -leder fuld duplex). RS485: Data + og Data - (2-leder halv duplex)
    Protokol
    TCP, UDP, DHCP, HTTP, ICMP, ARP, ICMP, Telnet, SMTP
    Indgang
    3 indgange der aktivereres ved at de ligges til stel
