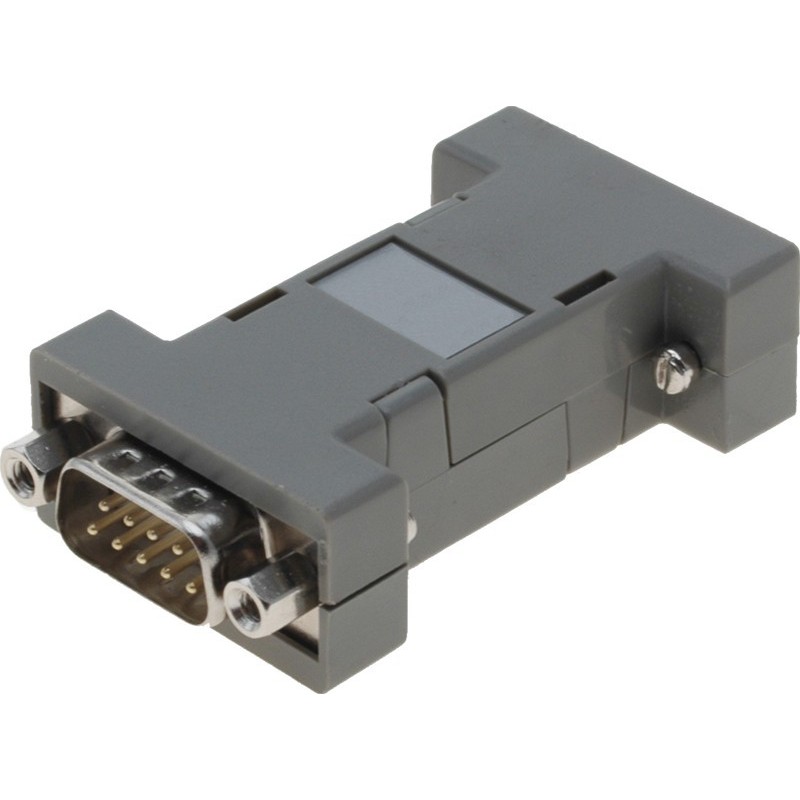

Isolated RS232 to RS422 converter works both ways

Product code: CNV232I422DB9

Bi-directional RS232 to RS422 converter
Galvanic isolation
DB9 male / 12VDC power supply included

  • Add to Comparison Remove from Comparison
    • 1,142.00 DKK
    Tax excluded
    On the way in
    Quantity

    Type: RS232 for RS422 with galvanic isolation and DB9 connector, full duplex
    Speed: Up to 460 kbit / s
    Distance: RS422: Up to 1.2 km RS232: Up to 15 m
    Isolation: 1 kV
    Indicator: Tx, Rx and On Mode
    Supply: 12 VDC External Power Supply included. Power consumption approx. 1 W
    Plug: RS232: DB9 female RS422: DB9 male
    Other: Isolates and transfers the following signals: Tx and Rx

    CNV232I422DB9

    Data sheet

    Forsyning
    Ekstern strømforsyning på 12 VDC medfølger. Strømforbrug ca. 1 W
    Isolation
    1 kV
