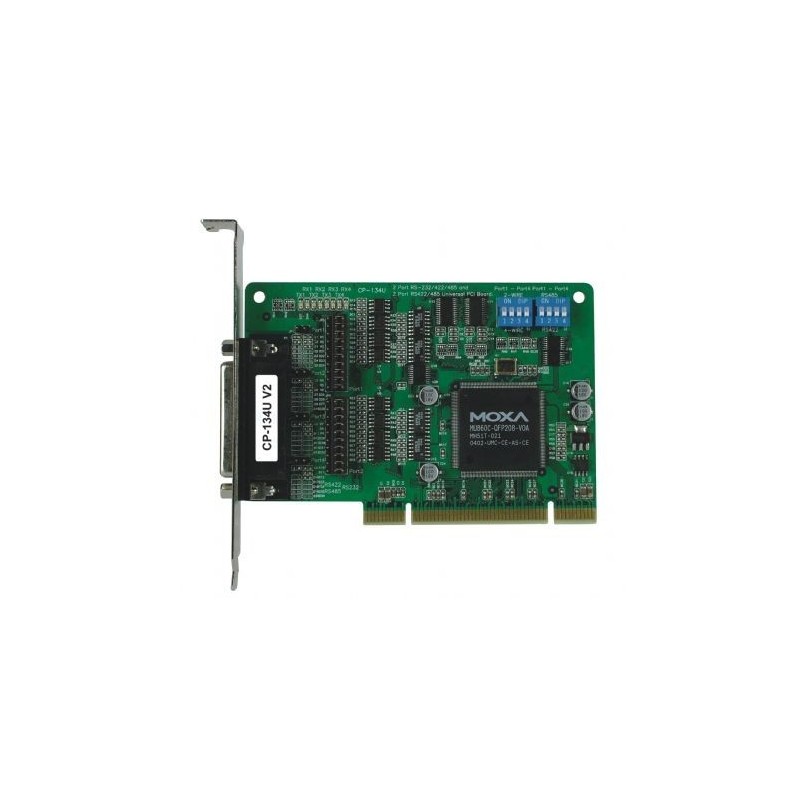

Moxa CP-134U V2, 4-port RS 232/422/485 Universal PCI serial card, DB9 for both 3.3V and 5V
Product code: SER4+F3PCI
Moxa CP-134U V2
4 ports for RS232, 422 or RS485. Each port can be checked up to 32 units in a multidrop network.
Up to 4 cards can be mounted in the same system (gives 8 or 16 ports).
Number of ports: 2 x RS232 and 2 x RS422 / 485
or 4 x RS422 / 485 (ie 2 + 2 or 4)
Baud rate: Max. 230.4 Kbit / s
Duplex: Point-to-point Full duplex or multidrop half duplex
UART: 16C550
FIFO: 16 Bytes
PCI: 3.3 and 5 V
in / O and Irq: Plug Play
High / Low Back plate: Can only be supplied with high back plate
Driver: RS485: DOS, Windows 98, NT, 2000, 2003, 64-bit win-dows drivers and Linux
Termination: No termination required; Termination resistors (120 Ohms) are built-in
Flow Control: On-chip hardware Flow Control
Handshake: RTS and CTS transferred
Connect 4 x DB9 Hanstik
Signals: RS-422: TXD +/-, RXD + / -, RTS +/-, CTS +/-, GND (4-wire) RS-485: Data +/-, GND (2 thread)
SER4+F3PCI
8 Items
Data sheet
- OS SUPPORT
- Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows Server 2008 R2/2012/2012 R2/2016 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded
2 x RS-232/485, 2 x RS-422/485 multiport serial card.
4 x RS-422/485 interface with ADDC up to 921.6 Kbps
RS-485 communication with range up For 1.2 km
Built-in 15 kv ESD
128-byte FIFO
Universal PCI compatible with 3.3 / 5V PCI and PCI-X
Windows XP / 2003 / Vista / 2008/7 / 8 /8.1/10 (x86 / x64)
Windows 95/98 / Me / NT / 2000
Windows Server 2008 R2 / 2012/2012 R2 / 2016/2019 (x64)
DOS
Windows Embedded CE 5.0 / 6.0, Windows XP Embedded
