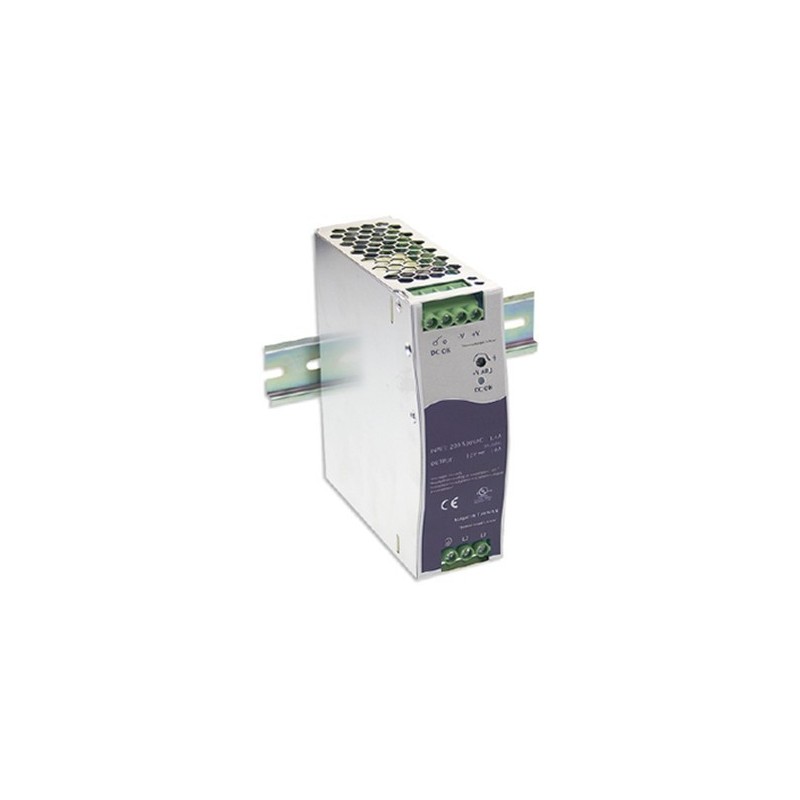

12VDC 10A (120Watt) power supply from 180-550VAC, DIN rail, -25 ° C - + 70 ° C
Product code: DC12V10A-D
Industrial 12 & nbsp; DC DC power supply for DIN rail mounting.
Compact and robust design
Power and voltage can be infinitely fine-tuned. an on / off clock with relay output
DC12V10A-D
20 Items
Data sheet
- Forsyning
- 180 - 550 VAC (47 – 63 Hz)
- Driftstemperatur
- -25 o C - +70 o C
- Stik
- Skrueterminaler
- Effekt
- 120W
- Strømstyrke
- Max 10 A
- Dimensioner
- 125,5 mm (H)
- Udgangsspænding
- 12 V
- Effektivitet typisk
- 80 %
AC / DC power supply for DIN rail mounting
Input 180-550VAC
Output 12VDC 10 A (120W)
DIN rail mounting
Screw terminal
Dimensions: 130 x 125 x 40mm ( H x D x B)
Operating temperature: -25 ° C - + 70 ° C
