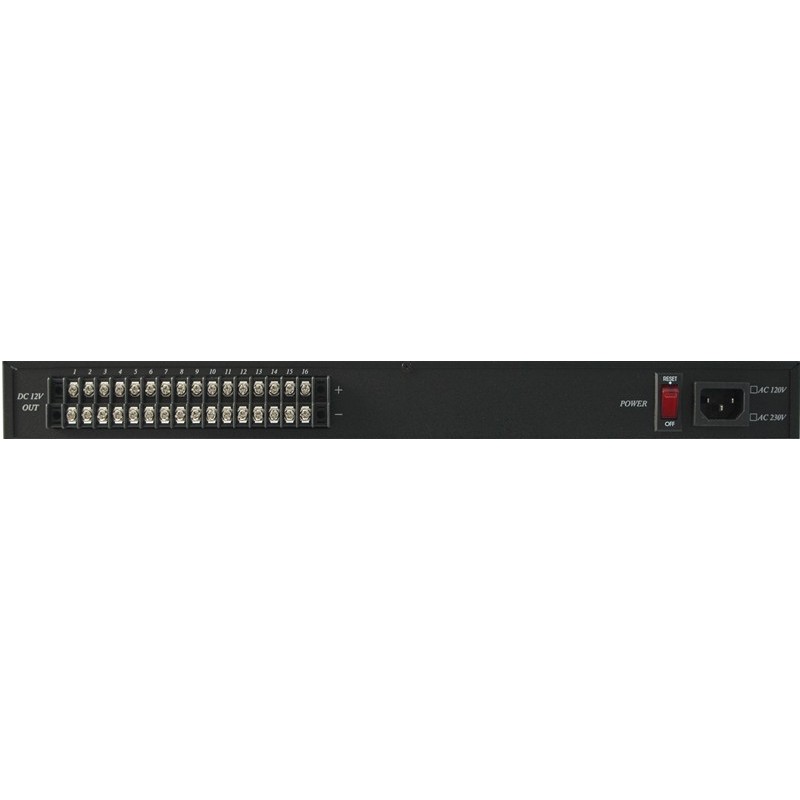

16 PORTS 12VDC, 8AMP power supply box for rack mounting. Built-in "No Fuse Breaker" at max. 1.1A per port
Product code: DC12V-16P-R
The power supply box is ideal with an UPS and emergency power generator in connection with power failure. It can be positioned centrally in relation to regular network adapters that typically sit in sockets that do not have emergency power. DC12V-16P-R is a rack mounted power supply that supplies 12V DC via 16 outputs. Built-in automatic lock on each port so that it can still retain voltage on the other ports if there is short circuit on another port. 19 "Rack mounting
Built-in automatic protection for all outputs, such as, for example, prevents a short circuit taking the power from the others. Automatic connection after short circuit occurs after 1 min. second
DC12V-16P-R
Data sheet
- Weight
- ca. 4 Kg
- Forsyning
- 230V AC
- Driftstemperatur
- -100 ~ + 450 C
- Spænding
- 1A/port
- Dimensioner
- 44 x 437 x 170 mm
- Udgangsspænding
- 12V DC reguleret
- Total udgangsstrøm
- 8A
19 "Rack power supply with 16 pcs. 12volt outlet
rated output power per port: 0.5amp
Total Power Consumption: 8AMP (96 watts)
Hearing power limits per port Max. 1.1AMP
Built-in PTC As short circuit protection
120 - 230VAC input
screw terminals
Dim: 437 x 170 x 44 mm
Weight: 2.6kg
Operating temperature: -10 - + 45 ° C
