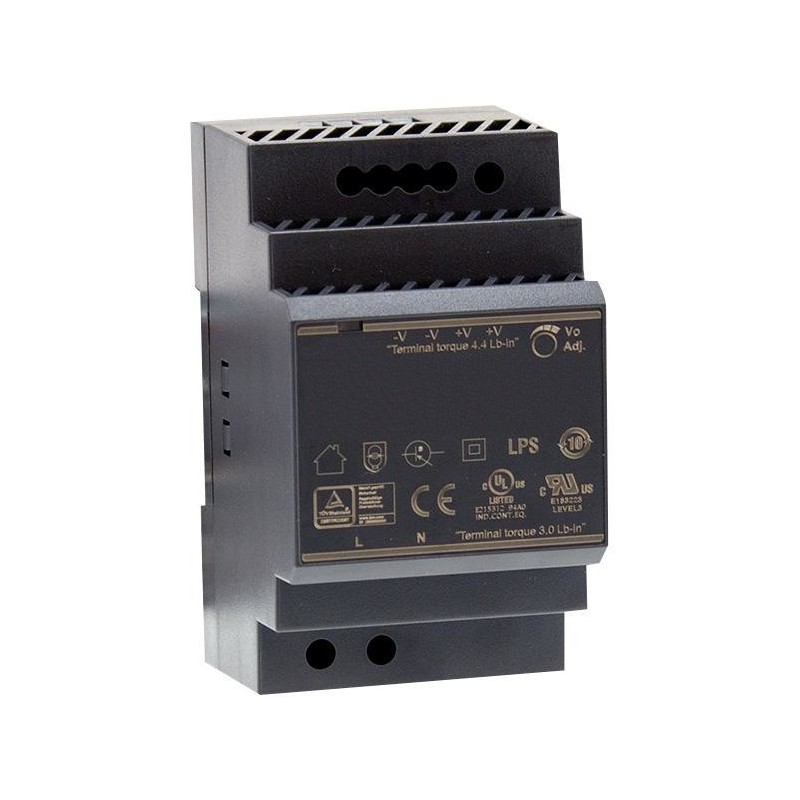

24VDC 60W Power supply from 85VAC-264VAC. 24V / 2.5A, adjustment 21.6-29V, DIN mounting
Product code: DC24V2.5A-D
Economic and ultraslank power supply that can be customized to be installed on TS-35 / 7.5 or TS-35/15 DIN rails. The house is narrow, allowing for saving space inside a cabinet. DC24V2.5A-D Power supply is designed with plastic house that can effectively prevent electrical hazards.
DC24V2.5A-D
1 Item
Data sheet
- Udgange
- 24VDC 2.5A 60W
- Driftstemperatur
- -30°C to +70°C
- Standarder
- RoHS, TUV EN 60950-1, UL 508
- Montering
- DIN skin
- Type
- Switch-mode
- Dimensioner
- 90 x 54.5 x 52.5 mm
- Indgang
- 120 til 370 VDC, 85 til 264 VAC
AC / DC power supply for your rail mounting
AC Input: 85 - 264Vac
Effect: 60W
Output voltage: 24V / 2.5A
Screw terminal
Adjustable output voltage for 24 to 29V
Working temperature: -30 - + 70 ° C
Dimensions: 90 x 54.5 x 62.5 mm (H, D, B)
