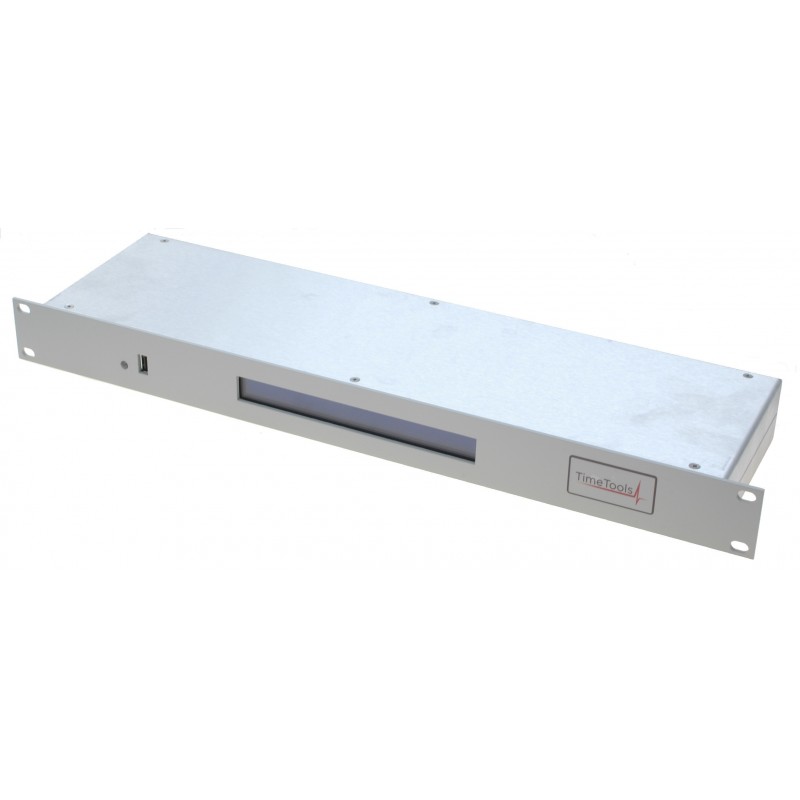

Atomic clock, GPS controlled time server NTP Server Network. Dual LAN with TCXO

Product code: ATOMUR-SAT-TRD+

Atomur- controlled GPS time server to the network 32
channel receiver which reduces the risk of signal loss
TCXO (Temperature Compensated X-tal Oscillator) in order to keep the time in the absence of GPS signal
10 / 100BaseT redundantly Ethernet
Low power consumption only 7W
230VAC 50-60Hz 0.1A
Operating temperature 0 to 50 °
Supplied with multi-antenna, wall mount and 30 m RG58 aerial cable

  • Add to Comparison Remove from Comparison
    • 20,244.00 DKK
    Tax excluded
    On the way in
    Quantity

    GPS-controlled time server for network
    time server delivers very high accuracy. The built-in GPS receiver detects 32 different satellites and provides accuracy of better than 3 microseconds, Italy although taking account of normal delays in the network, or 15 nanoseconds. It is therefore well suited as a real source of various industrial systems with high precision requirements.

    Compatible with most operating
    Can be used for all products that support protocols Network Time Protocol (NTP), and Simple Network Time Protocol ( SNTP), Italy that includes Windows, Linux, Unix, Novell and most switches and routers from such. Cisco.

    Robust aluminum construction with no moving parts for long life

    ATOMUR-SAT-TRD+

    Data sheet

    Weight
    1.2Kg
    Forsyning
    230VAC 50-60Hz 0.1A
    Kabinet
    1U High 19" Rack-mount, Aluminium
    Driftstemperatur
    0-50°C
    Interface
    Dual 10/100 Mbit Base-T, RJ45, Auto-Sensing Network Interfaces. TNC RF Connector For Active GPS/GNSS Antenna. USB port for firmware updates. RS232 Console Port for Configuration and Status. Second RS232 (shared) Port for serial time code output.
    LED
    40 character x 2 line LCD display. Red/Green Alarm LED.
    Kabel
    30m RG58 Cable.
    Antenne
    T-3740 GNSS Multi-Constellation Antenna
    Software
    Flash-Based Linux Operating System with PPS Extensions.
    Dimensioner
    483 x 145 x 44 mm (19.0” x 5.71” x 1.73”)
    GPS
    GPS/GNSS Timing Receiver 32 Channel Multi-GNSS receiver. GPS, GLONASS, Beidou, Galileo*1. Time-Receiver
    Protokol
    Internet Protocol (IP) IPv4, IPv6. Timing Protocols: NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC 5905). SNTP v3 (RFC 1769), SNTP v4 (RFC 2030). NTP Peering, NTP Broadcast. NTP MD5 Authentication.
    Other
    Timing: GNSS Accuracy: 15 nsec (15x10-9 sec, GPS Lock) NTP Accuracy (GPS Lock): usec (3x10-6 sec) TCXO Holdover 24 Hours (after 24 hrs continuous GPS lock): ±4.3 msec (25°C) ±164 msec (0°C-40°C)
