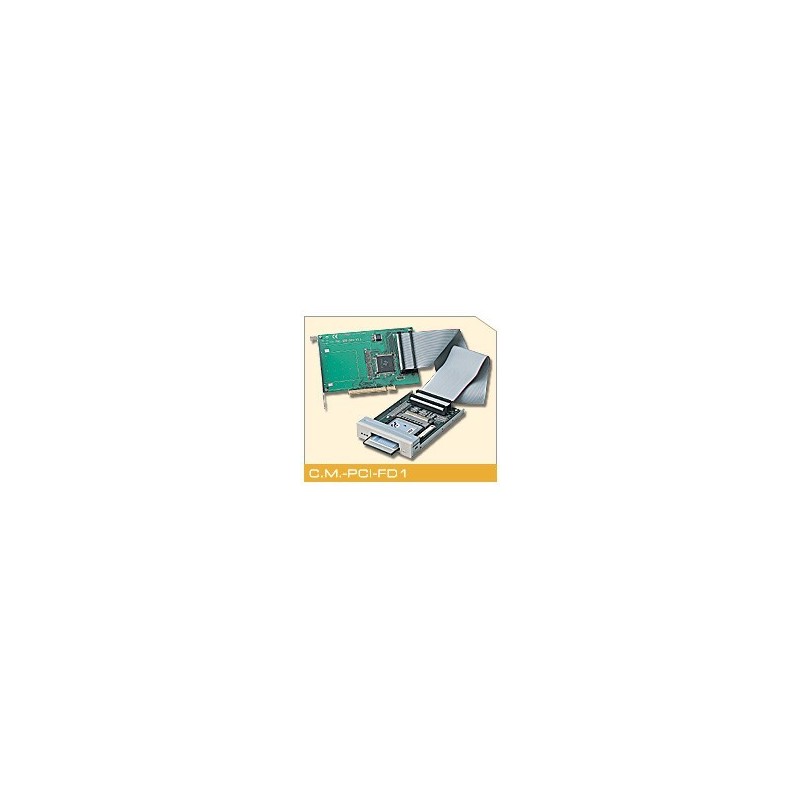

Restlager: PCMCIA, 1 x front, 1 x bøjle, PCI. CARDMASTER PCI/FDI
Product code: PCM-PCI1+1
Comply with PCI power management
Comply with ACPI
1 front/1 rear slot, access from rear of PC
Accept Type I/II/III Cards
Comply with PCI Local Bus Specification Rev.2.1
Comply with 1995 PC Card (CardBus) Standard
ExCa compatible Registers are mapped in Memory
Use T/I 1420 PCMCIA controller
Support one PC Card or CardBus Slots with Hot Insertion and Removal
Mix and Match 5V/3.3V PC Card 16/32 bits Cards and 3.3V CardBus Cards
Support Burst Transfers to Maximize Data Throughput on both PCI Buses
Supports Distributed DMA and PC/PCI DMA
Support 16/32 bit DMA on both PC Card Sockets or I/O space.
Specification
LED indicators : Power, Busy and Battery Low
Power Supply Voltage : 5V and 3.3V Typical
Operation Temperature : 0°C—70°C
Storage Temperature : -20°C—85°C
Relative Humidity : Max 90%
Dimensions 162mm(L ) x 107.8mm(W) x 15mm(H)
For I/F Card Standard 3.5” FDD For Factor
PCM-PCI1+1
1 Front / 1 Rear Slot
Accept Type I/II/III Card (SRAM card, Linear Flash card, ATA card,
Fax/Modem card and LAN card.)
Comply with PCI Local Bus Specification Rev. 2.1
Comply with 1995 PC Card ( CardBus) Standard
INTEL 82365SL Register Compatible
Mix and Match 5V/3.3V PC Card 16 Cards and 3.3V
CardBus Cards for Real slot, front slot just support 16 bit cards.
Use T/I 1420 PCMCIA Controller
Bundle software driver enable all PC Card works without ISA Board
Support Windows 98/2000/Me/XP
Support Linux OS
