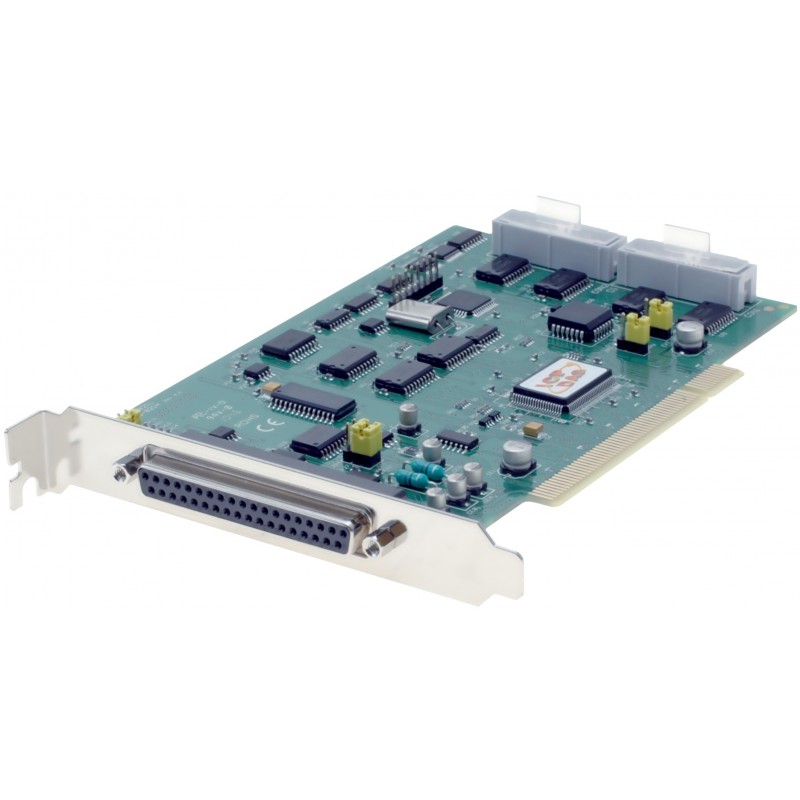

AD card, PCI 12 bit A / D D / A data acquisition - PIO-821HU CR
Product code: AD16S12PCI-H-I
12 bit A / D card with programmable gain up to 1000 times and high input impedance.
Therefore, the card is also suitable for small signal transducers such as thermocouples and strain gauge weighing cells.D / A output, digital I / O and counter allow for extra control and control.
AD16S12PCI-H-I
1 Item
Data sheet
- Stik
- DB37 hunstik til analoge ind- og udgange 2 20 ben IDC-stik til 16 digitale ind- og udgange samt tæller
- OS SUPPORT
- DLL-biblioteker til VB,VC,Delphi,BCB,VB.NET,C#.NET til brug under Windows 2000, XP, Vista, Win7 og Win8 medfølger
- Nøjagtighed
- 0,015 % af udlæsning -1 bit
- Måleområde
- Stort måleområde: 5mV til 5V, op til 45 KHz
- Indgangsimpedans
- 10
- Tæller
- Type 8254 - kan bruges som Timer, Pacer trigger og Pre-trigger tæller
12 bit A / D card with programmable gain
16 "single-ended" or 8 differential
45Khz for sharing between active channels (Conversion time: 8 μs)
D / A output: 1 output with 12 bit resolution
Area: 0-5 V and 0-10 V; linearity: ½ bit; stabilization time: 0.6 μs
Didital I / O: 16 TTL input and 16 TTL outputs
12 bit ver. incl. drivers for DOS and Win.
Connectors: DB37 female connector for analogue inputs and outputs
2 x 20 pin IDC connectors for 16 digital inputs and outputs and counters
