ADLINK's PCI-7433. 64 kanalers isolerede digitale indgange, PCI
Product code: OPTI64PCI

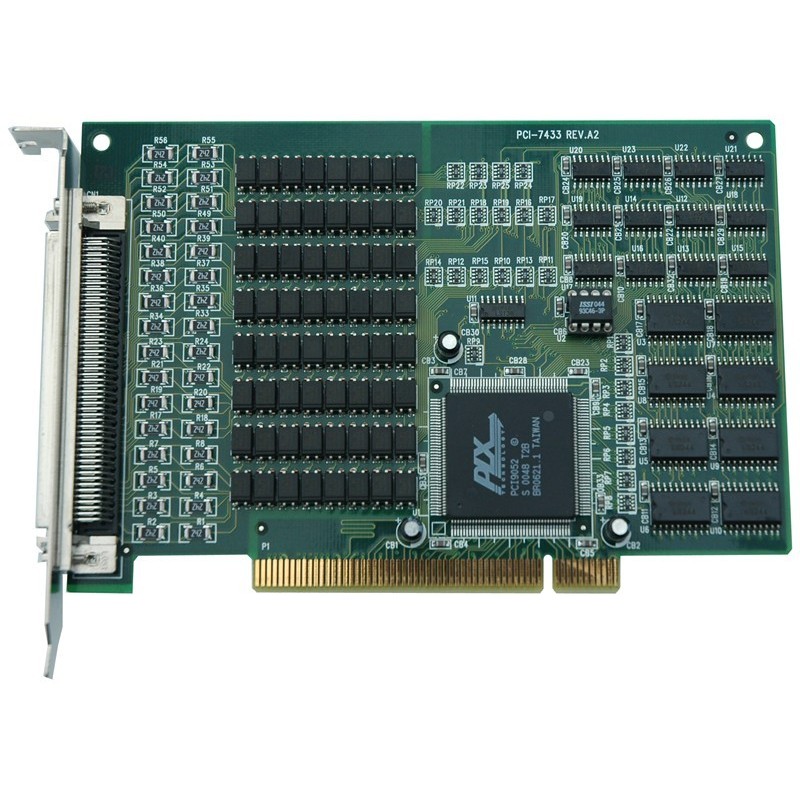

OPTI64PCI (ADLINK's PCI-7433) card is a 64-CH high-density digital input and/or output cards that provide a robust 2,500 V isolation protection and are suitable for most industrial applications. The wide input range of the cPCI/PCI-7432 and cPCI/PCI-7433 makes it easy to sense the status of external devices. There are several options such as normal version with input range from 0 to 24 V, as well as HIR version with high input range from 0 to 50 V.
OPTI64PCI
2 Items
Data sheet
- Stik
- DB100 hun
- Software
- Drivere til Windows 2000, XP, Win7 og Win8 Labview og Linux medfølger
- Dimensioner
- 93 x 137 mm
- Indgangsimpedans
- 2,4 kΩ
- Indgang
- 64 stk. Logisk 0 fra 0 - 2,4 V Logisk 1 fra 4 - 24V maks. 10 kHz fælles stel
Supports a 32-bit 5 V PCI bus
64-CH isolated digital inputs
2500 VRMS optical isolation
Sink current up to 500 mA on each isolated output
