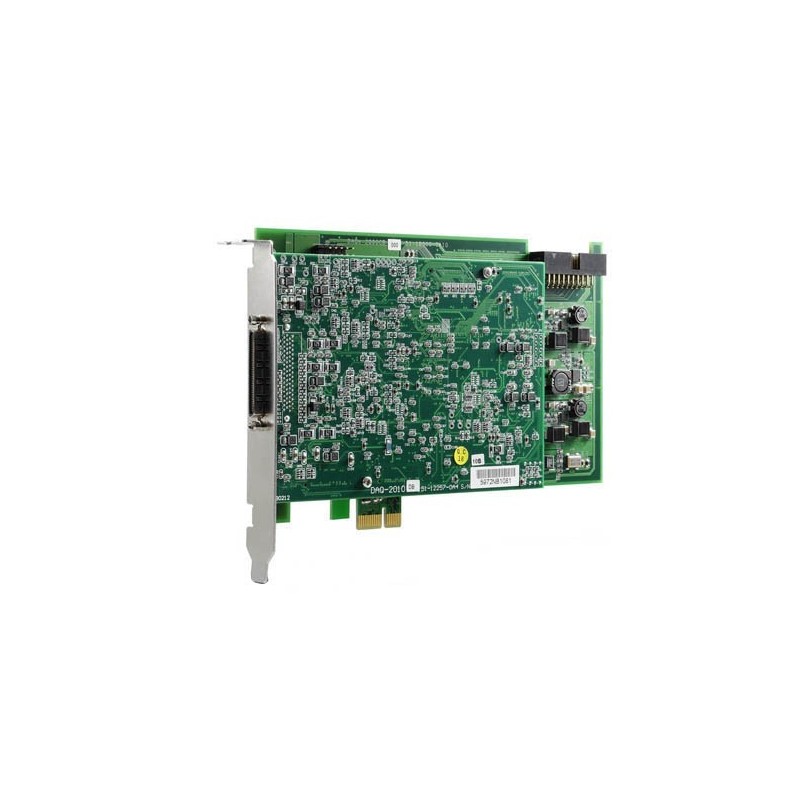

Adlink DAQe-2005. 4 kanals 16 bit dataopsamling, 500kHz / kanal, PCIE X1
Product code: ADQ4S16PCI-E
This 4-channel A / D converter uses an inverter for each input channel, so the conversion can take place exactly simultaneously on all channels, which is often a requirement when measuring signals with high bandwidth. In addition, use of the A / D converter's full speed. The conversion of multiple A / D card installed in the same PC can be synchronized. DMA transfers are supported, as A / D converter full speed can be utilized. The differentially coupled inputs ensures the best possible noise suppression.
ADQ4S16PCI-E
Data sheet
- Opløsning
- 16 bit
- Stik
- 68 polet VHDCI hunstik
- Nøjagtighed
- ±0,01 % af FSR
- Måleområde
- ±10 V; ±5 V; ±2,5 V ±1,25 V; 0-10 V; 0-5 V; 0-1,25 V
- Digital I/O
- 24 programmerbare TTL ind/udgange
- Konverterings- hastighed
- 500 kHz / kanal
- Tæller
- 2 stk. 16 bit TTL tællere
- Indgang
- 4 differentielt koblede spændingsindgange med programmerbar forstærkning
- Data
- 512 bytes måledata
4 kanaler, 16 bit A/D dataopsamler, PCI Express X1
4 differential indgange - op til +/-10VDC
Sample rate er 500kHz per kanal
68 polet VHDCI hunstik
Terminalkort tilkøbes - TERM68 + kabel
