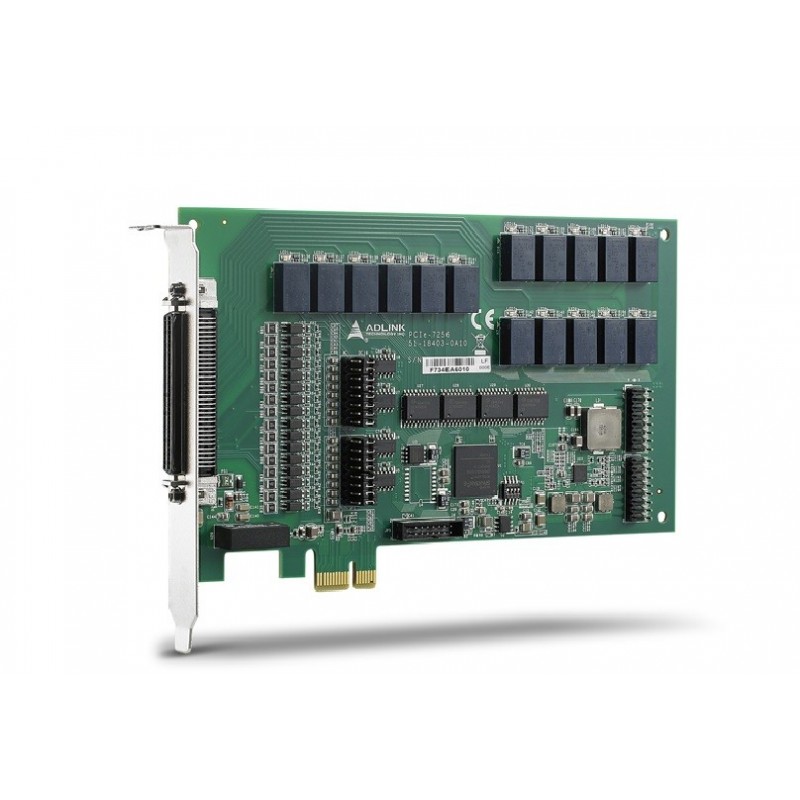

16-CH Latching Relay Outputs & 16-CH Isolated DI Card, PCIE
Product code: REL16OPT16
ADLINK's PCI/PCIe-7256 features all Form C type relays, ideal for device connection with on/off control. With latching relays, the PCI/PCIe-7256 further provides operating power conservation, while the status of each latching relay output is indicated by onboard LED. When the relay is in SET, its corresponding LED lights. Latching relays also feature unchanged status even when the system powered off, making the PCI/PCIe-7256 suitable for critical applications requiring output status to be maintained even under fault conditions. All digital input channels are non-polar and optically isolated, and may be set for optional use of RC filter. The PCI/PCIe-7256 also features a change-of-state (COS) function generating interrupt when any digital input changes state.
REL16OPT16
1 Item
Data sheet
- Udgange
- 16 skifterelæer (”klæbe-relæer”) Belastning: 250 VAC 5 A eller 30 VDC 1 A Skiftetid: typisk 3 ms
- Driftstemperatur
- 0C ~ 60C
- Stik
- DB68MM female
- Strømforbrug
- Typisk +3.3V (36.3mA, MAx. 980mA), +12V (141mA, Max 464mA)
- OS SUPPORT
- Windows 7/10 64/32 bit support Linux i686
- Isolation
- Voltage 1500Vrms
- Dimensioner
- 165 mm x 107 mm (6.82" x 4.17")
- Hastighed
- Relay ON/OFF operate / Release time 3 ms
- Indgangsimpedans
- 4.7k Ohm @ 0.5 W
- Indgang
- 16 isolated 0-24V high(10-24V) Low (0-2V)
- Isolationsspænding
- 2500 Vrms chanel to system
Supports a PCI Express x1, Plug and Play (PCIe-7256)
16-CH latching SPDT relay outputs
Power saving on relay actuation
Output status unchanged when power-off
On-board LED indicators for relay status
16-CH isolated DI
Change-of-status (COS) interrupt
Board ID
