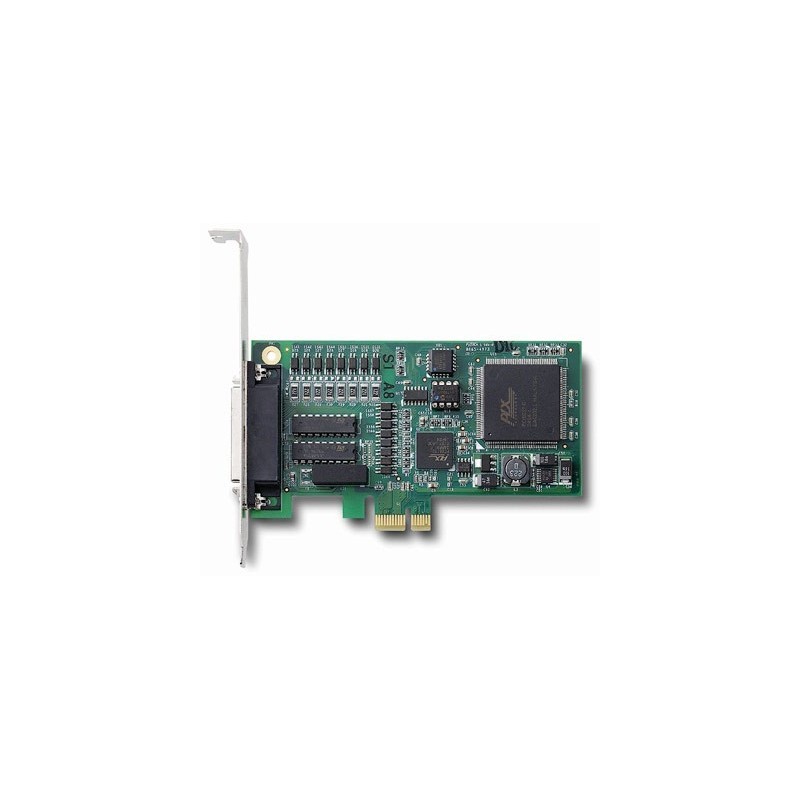

Adlink PCI-7230. 16 kanals isolerede digitale input, 16 kanals isolerede digitale OC-output , PCI Express, Low Profile

Product code: OPTO16I16PCIE-L

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Supports a 32-bit 5 V PCI Express bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

  • Add to Comparison Remove from Comparison
    • 3,965.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    OPTO16I16PCI-LE (ADLINK"s PCI-7230) is a 32-CH isolated input and/or output cards which provide a 2,500 V optical isolation protection. The wide input range of the OPTO16I16PCI-LE makes it easy to sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The OPTO16I16PCI-LE device also feature a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications. The OPTO16I16PCI-LE also provide two interrupt sources on digital input channels.

    OPTO16I16PCIE-L
    1 Item

    Data sheet

    Udgange
    16 optoisolerede, fælles stel (minus) "Open collector" 5-35 VDC Kan trække op til 500 mA til stel
    Stik
    MiniDB50 med klemmer
    Isolation
    2.500 VDC på ind- og udgange
    Software
    Drivere til Windows 2000, XP, Win7 og Win8 Labview og Linux medfølger
    Dimensioner
    69 x 120 mm
    Indgangsimpedans
    1,2 kΩ / 0,5 W
    Indgang
    16 optoisolerede, fælles stel (minus) Logisk 0: 0-1,5 VDC Logisk 1: 5-24 VDC
