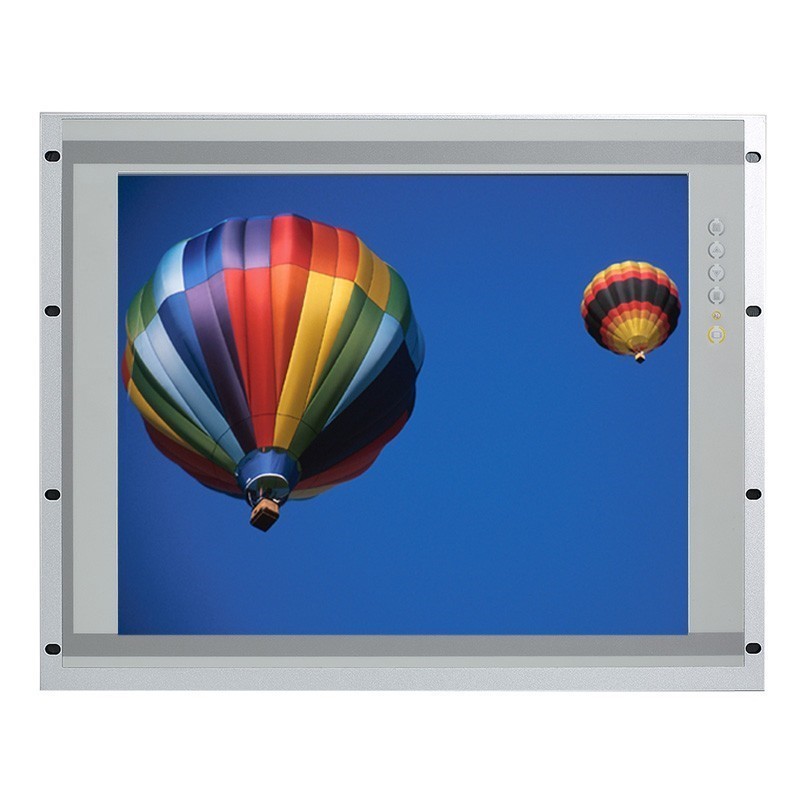

19 "Panel LCD Monitor, IP65 Front, Resistive Touch USB, 1280x1024, VGA, DVI-D, HDMI, DC12 or 24V, 250 Nits, 4: 3
Product code: MON19-P-TU
Mon19 "P-TU24V is in the metal cabinet and is intended for industrial use and for installation in panel.
We can provide models with RS232 Touch for older solutions.
MON19-P-TU
1 Item
Data sheet
- Weight
- 6 kg
- Forsyning
- Screw-type external AC/DC EU power adapter
- Driftstemperatur
- 0°C ~ +45°C (+32°F ~ +113°F)
- Tilbehør
- 1 x VGA cable 1 x USB cable for touchscreen 1 x Audio cable 1 x EU power cord
- Stik
- 1 x USB 1 x DP 1 x VGA 1 x HDMI 1 x Screw-type DC power input
- Lysstyrke
- 250 nits
- IP-Tæthed
- IP65 front
- OSD
- OSD (on screen display)
- Mål og vægt
- 19" SXGA TFT LED
- Dimensioner
- 482 mm (W) x 55 mm (D) x 380 mm (H), Pakke dimensioner: 595 x 230 x 555 mm
- Touch
- USB resistive touch (option RS232 on inquiry)
19 "LCD Monitor
Resolution: 1280 x 1024
4: 3 Format
IP65-Front
250 Nits
USB Resistive Touch
1 x DVI-D
1 x VGA
1 x HDMI
1 x USB to Touch
for Panel mounting. Option: Wall / Rack or Desktop Mounting
Dimensions: 482 x 55 x 380mm (with frame)
Cut-out dimensions : 407.1 x 334.6mm
12 or 24V DC Screw-type
Weight: 7.5kg
