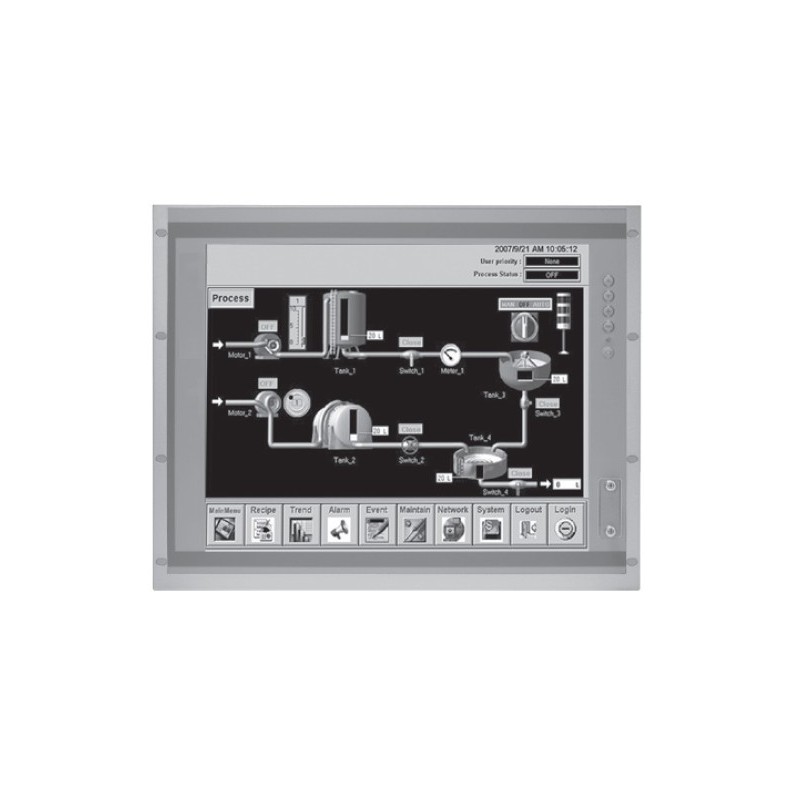

19 "SXGA TFT Panel PC 6. Gen i3 / i5 / i7, Celeron & Pentium, Option: 1 PCI or PCIe slot
Product code: IPP19IX-PCIEX
19 "Industrial PANEL PC with PCI or PCIex expansion. Contact our sales department about options for a complete solution.
Other solutions can be offered.
IPP19IX-PCIEX
1 Item
Data sheet
- Weight
- 8 Kg / 10.4 Kg
- CPU
- Socket LGA 1151 6. gen i3/i5/i7, Celeron & Pentium processors
- Udgange
- 1 x HDMI, 1 x VGA, 1 x Display port
- Driftstemperatur
- 0C ~45C
- Porte
- 3 x RS232, 1 x RS232/422/485
- Strømforbrug
- 157W
- Chipset
- Intel H110
- Watchdog
- 255 levels, 1~255 sec.
- OS SUPPORT
- WIN 10
- Hukommelse
- 2 x 288 pin long DIMM DDR4-2133 max. 32 GB
- Lyd
- Mic-in/Line-out
- Montering
- VESA, WALL, RACK
- Skærm
- 19" SXGA TFT LCD, 250Nits, 1280 x 1024 Pixels
- Luftfugtighed
- 10% to 90% non condensing
- Ethernet
- 2 x 10/100/1000 Mps (intel i219LM/i211AT)
- USB
- 4 x USB 3.0 (back), 2 x USB 2.0 (front)
- Strømforsyning
- 100 ~ 240 Vac, 270W
- Dimensioner
- 482 x 94.7 x 380.8mm
- Materiale
- Front Aluminium with IP65/NEMA 4 rugged protection
- Chok/Vibration
- 1.0G, 5-500Hz, random
- Touch
- 5-wire Resistive
- Udvidelser
- 1 x PCIex or 1 x PCI, when ordering
- Storage
- 1 x 3.5SATA HDD or 1 x 2½" SATA HDD
- Approval
- CE
- Other
- Slim DVD as option, 1 x PS/2 keyboard & mouse combo
19 "SXGA TFT LCD
1280 x 1024 Pixels
2x288 pin DIMM DDR4-2133 max. 32GB
3xRS232, 1xRS232 / 422/485
4xUSB 3.0, 2 x USB 2.0
2 x Ethernet 10/100 / 1Gbit
1xHDMI, 1xVGA, 1X DP
Audio
Option: 1PCIex or 1PCI
DVD option
WIN 10 support
