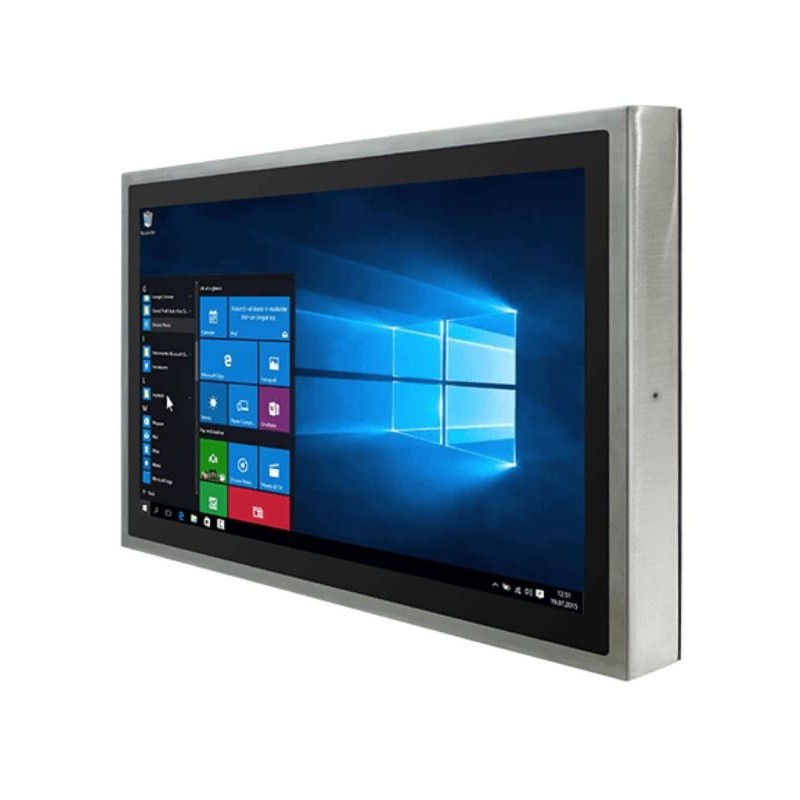

21.5" CPU I5, PCAP Panel PC FULL IP69K, SUS316/ASIS316 Stainless Steel 250Nits or 1500 nits version
Product code: IPP21.5IX-IP69K
The Panel PC fully complies with IP69K water and dust resistance to withstand splashing conditions during stringent cleanup processes and strict hygiene demands in the Food, Beverage, and Pharmaceutical industries.
The wide range of stainless (HMI) and Panel PCs are widely used for automation processes.
Projected Capacitive Multi-Touch (P-CAP)
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
We have other sizes and solutions please contact us for further information.
IPP21.5IX-IP69K
Data sheet
- CPU
- Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
- Driftstemperatur
- 0°C to 45°C
- OS SUPPORT
- Windows 11 IoT Enterprise (64 bit) Windows 11 Pro 64 bit Windows 10 IoT Enterprise (64 bit) Linux Ubuntu 22.04
- SATA
- 1 x SATA III up to 2TB OPTIONAL
- IP-Tæthed
- Full IP69K
- Skærm
- 21.5" Full HD TFT LCD 250 nits 1920 x 1080
- Maks. opløsning
- 1920x1080 @ 60Hz
- Luftfugtighed
- 10% to 90% RH, NonCondensing
- Ethernet
- 1 x RJ45 M12
- USB
- 1 x USB 2.0
- Mål og vægt
- 10Kg
- Dimensioner
- 541 x 337 x 56.2 mm
- Betjening
- OSD Control Panel
- Touch
- P-cap multi-touch (USB)
- bluetooth
- Optional
- TPM
- 2.0
- M.2
- 1 x M.2 M-Key 2280 NVMe SSD
- WiFi/WLAN
- Optional
21.5" TFT 1920x1080
standard 250Nits (on special request 100 or 1500 nits)
PCAB Multi Touch Screen, Support touch with glove/ Rain mode
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) Gen 11.
1 x SO-DIMM DDR4 3200MHz, MAX.32GB
M12 waterproff connectors
2 x Rj45 Intel Ethernet
1 x M.2 2280 NVMe SSD
1 x RS232
1x SATAIII
TPM 2.0
IP67K
VESA: 200x100 M4
Addons: "Optical Bonding", YOKE mount
541x337x56.2mm
10Kg
Stainless Housing SUS 316/ AISI 316
10% to 90% RH, NonCondensing
Working Temperature 0°C to 45°C
12Vdc (M12 Type)
CE, FCC
