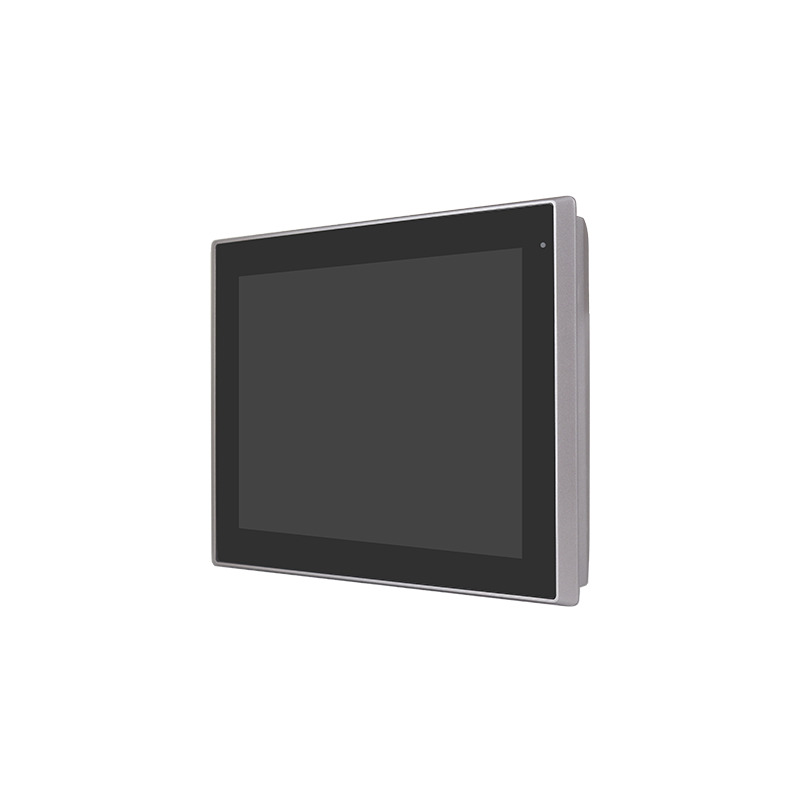

12.1 "Industrial Panel PC, I3 / I5 CPU, USB, RS232, Touch, 450/500/1000 NITS versions, 9 ~ 36VDC Supply Many options!

Product code: IPP12-IX-1000N

12.1 "TFT
CPU Gen.6 I3 Standard (I5 Option)
with or without touch resistive, Projected capacitive 7h Anti Scratch surface
1 x 260-pin SO-DIMM DDR4 2100MHz Max. 16GB
2 x USB 3.0
1x 2½ "SSD Sata Bay
1 x Mini Pcie Slot Full Size
1xDB9 RS232 / 422/485, COM1, 1X RS-232 DB9 COM 2
2 x RJ45 GBE LAN RJ45
IP66 Front
Vesa Mount 100x100
319x245x51.7mm
1 x 3 Pin DC 9 ~ 36vdc
Windows IoT Support

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    One of our industrial models that can be delivered in many versions. Robust industrial solution.
    can be supplied with 1000 nits TFT there e rafted for sunlight use.
    built in aluminum cabinet.
    flat front There is IP66 close.
    Contact us for price with options
    VESA Stand 4G LTE / Wi-Fi / BT 4 x USB 2.0 Type A, 4 x USB 2.0 Type A + 1 x Mini Pcie + 1 SIM slot, 1 x COM + 2 x USB 2.0, 1 x COM (RS-232) + 2 x USB 2.0 + 1 X Power Button, 2 x COM (RS-232), 2 x COM (RS-232) + 1 x Mini PCIe Slot + 1 x SIM slot. 2 x COM (RS-232/485, isolated). 2 x can. 1 x LAN + 2 x USB 2.0. 1 x LAN + 2 x USB 2.0, 45W POE (POE) * UPS Battery 21W / 10.8W / 1.95AH System IS ONLYLOWED TO BUILD IN EITHER I / O BOARD TB-528 Series or UPS Battery

    IPP12-IX-1000N

    Data sheet

    Weight
    2.6Kg
    Compositions
    Aluminium
    Forsyning
    DC 9~36Vdc MAX 47W
    Opløsning
    MAX 800x600 /1024x768
    Driftstemperatur
    0~50˚C / -20~60˚C (option)
    Porte
    1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2
    OS SUPPORT
    Windows IOT
    Back-up
    UPS battery 21W/10.8W/1.95Ah OPTION!
    Lyd
    line out
    Montering
    Panel Mount, Vesa mount 100x100
    Skærm
    12.1" 800x600/1024x768 Depens on selcted display
    Ethernet
    2 X RJ45 GbE
    USB
    2 x USB 3.0 type A
    Dimensioner
    319x245x51.7mm
    Touch
    Needs to be ordered! Resistive, Projected capacitive or glass
    Kontrast
    1500:1(800x600), 1000:1(1024x768) (1000 nits 700:1)
    Approval
    CE / FCC, Class A / UL
    SSD
    2½" BAY SATA
    Nits
    450/500/1000 nits option needs to be specified when ordering
