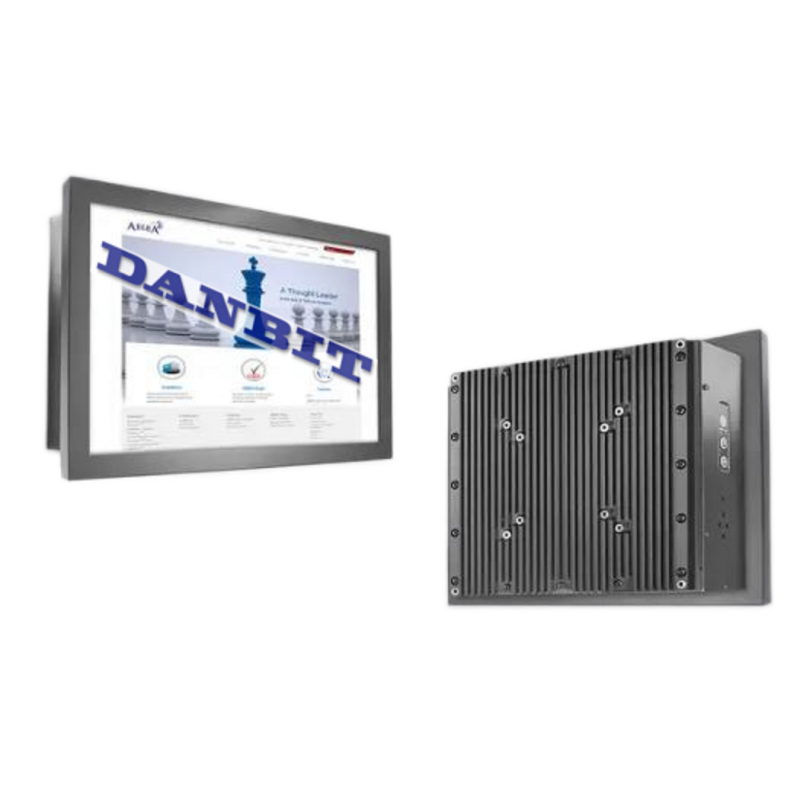

12.1" Fanless Panel PC IP65 front12.1" LCD monitor, 1280 x 800, LED 400 nits,Intel®Celeron J6412 widescreen
Product code: IPP12.1-J6412-WIDE
This model can be made with different layout solutions. ALL below need to be ordered special!
Touch: Resisitve Touch, Projected Capacitive Touch, Infrared Touch, Projected Touch, Projected Glass,Optical bonding
Video Input: AV-Looping, HDMI/DP, HD-SDI
Panel: High Brightness Panel, Sunlight Readable, Wide Viewing Angle, Wide Temperature, UV FILM, Anti-Vandal
Power: 24Vdc, 9~36Vdc, 48V, 12Vdc, 90V Dc, 125Vdc, 110V, 220Vdc
Motion Sensor, Light Sensor, VR-knob Dimming, RS232 Remote On/off, Military Connector: MIL 38999, Metal Connector M12/M16
Chassis: Stainless 316 Enclosure
IPP12.1-J6412-WIDE
12.1" LCD 1280 x 800 LED 400 Nits
Intel®Celeron J6412 processor Intel® Elkhart Lake
BISO UEFI
Support DDR4-2666/2933/3200MHz, Max. Capacity 32GB
2 x HDMI
3 x USB 3.0
3 x USB 2.0
2 x LAN
1 x Line-out
1 * M.2 Key-M(NVMe SSD 2280), 1 * M.2 Key-B Slot
Security support TPM 2.0 onboard IC
Standard IP66/IP67 models I/O: 1 x HDMI, 2 x USB, 1 x LAN.
(Needs to be ordered special: connector type: M12 Metal connectors, MIL-38999, MIL-26482 series connectors
-15°C ~ 70°C (5°F ~ 158°F) , 10% ~ 90% (no condensation)
