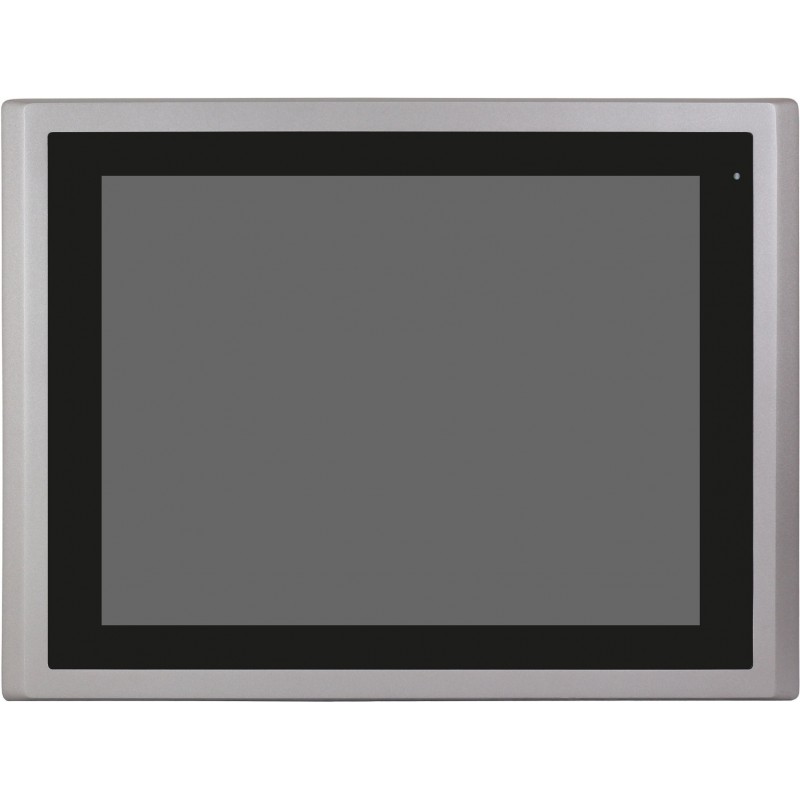

15" panel PC m/ Core i5
Product code: IPP15I3
Panel PC med Core i3 CPU. Oprion i5 CPU. kontakt salg.
Kan leveres komplet med OS , RAM og SSD.
- Kontakt vores salgsafdeling for priser og mere information.
IPP15I3
Data sheet
- CPU
- Onboard Intel 4th Gen. Core i3 CPU (option i5)
- Forsyning
- DC 9~36V 1 x 3-pin DC Power input terminal / 1 x 2-Pin Power Switch
- Driftstemperatur
- temperature(°C) 0~50˚C, -20~60°C (option)
- Porte
- 1 x DB9 RS232/422/485, 1 x RS232 DB9
- OS SUPPORT
- Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 7 Pro (FES) Windows 7 Ultimate (FES), Windows Embedded 8.1 Industry Pro, Windows 10 IoT
- Hukommelse
- Onboard 4GB DDR4L / max 8GB
- Lyd
- 1 x Audio Line Out
- Montering
- Panel Mounting / VESA 100 x 100
- Luftfugtighed
- 10 to 90%@ 40˚C, non-condensing
- Ethernet
- 2 x GbE LAN RJ-45
- USB
- 2 x USB 3.0 type A
- Dimensioner
- 410mm x 310mm x 54.7mm
- LCD
- 15" TFT-LCD Max. resolution 1024 x 768 Max. color 16.7M Luminance(cd/m²) 420 Viewangle(H°/V°) 160/160 Backlight lifetime(hrs) 50,000
- Touch
- Projected Capacitive Touch, USB
- Storage
- 1 x 2.5" SATA Bay, 1 x SD card slot max. 32GB
- Other
- Optioner: 2 x CAN 2 x USB 2.0 type A + 1 x Mini-PCIe slot + 1xRS-232 DB-9 via TB-528C1U2P1, 2 x USB 2.0 type A , UPS battery 21W/10.8V/1.95Ah
Build To Order
15" TFT-LCD
CPU i3
Max. res. 1024 x 768
Touch projected Capacitive Touch
4GB DDR4 RAM (Max. 16GB)
2 x USB
2 x RJ45 Lan
1 x RS232/422/485, 1 x RS232
OS support: Win. Embedded Compact 7,
Win 7 / 7 Pro, Win 7 Ultimate, Win Emb. 8.1 Industry Pro
Windows 10 IoT
