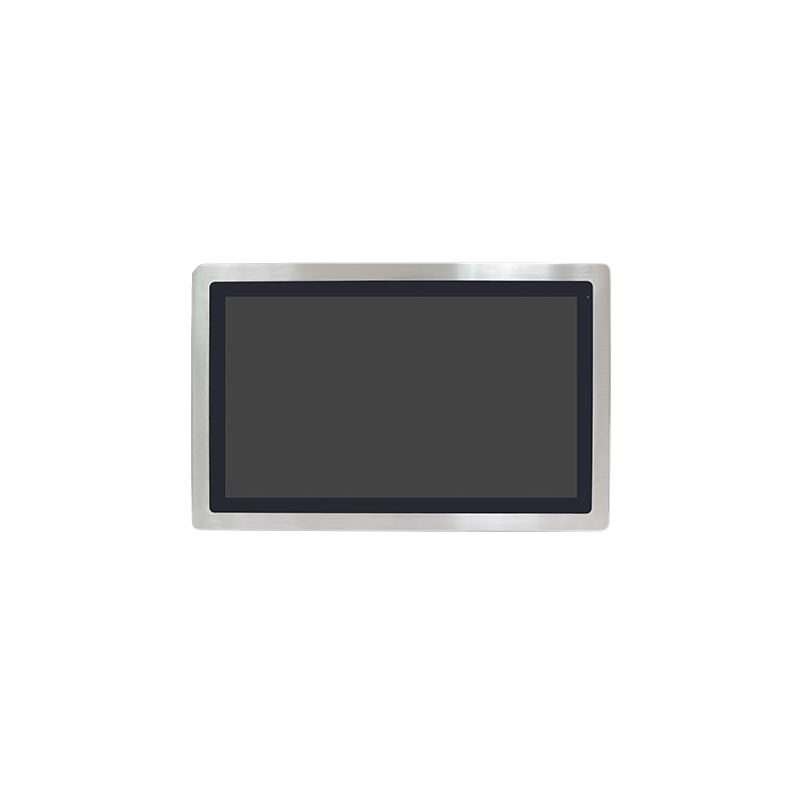

24" Panel PC IP66 Closed Steel Cabinet with M12 Connection I3 or I5 CPU

Product code: IPP24IX-IP66

21.5”  Stainless Steel Panel PC
easy to clean Design
Grade 304 Stainless Steel Enclosure
(Option 316 can be ordered special)
IP66/IP69K IP
M12 Connectors
Can be ordered with Resistive Touch, Projected Capacitive Touch, and Glass (Specified when ordered)
Touch on/off Button on the Side Edge for Hygienic Cleaning
Vesamount
YOKE-Mount as option

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Industriel Panel PC i rustfrit stål kabinet.
    Kan udvides i IO (USB,RS232,CAN,LAN med POE) kantakt os vedr. muligheder.

    IPP24IX-IP66

    Data sheet

    Compositions
    304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
    Opløsning
    1920 x 1080
    Driftstemperatur
    0~50°C
    Porte
    M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
    Lysstyrke
    250(1000 option)
    Netværk
    M12 8-pin for LAN with waterproof cover and chain
    Input
    M12 3-pin for DC power with waterproof cover and chain
    Hukommelse
    260-pin SO-DIMM up to 16GB DDR4 2133MHz
    Montering
    VESA mount 200 x 100, Yoke mount for optional
    Skærm
    23.8”
    USB
    M12 8-pin for USB 2.0 with waterproof cover and chain
    Dimensioner
    656 x 423 x 53 mm
    Touch
    Projected capacitive touch, touch on/off button at the side
    Storage
    1 x 2.5" SATA3 HDD
