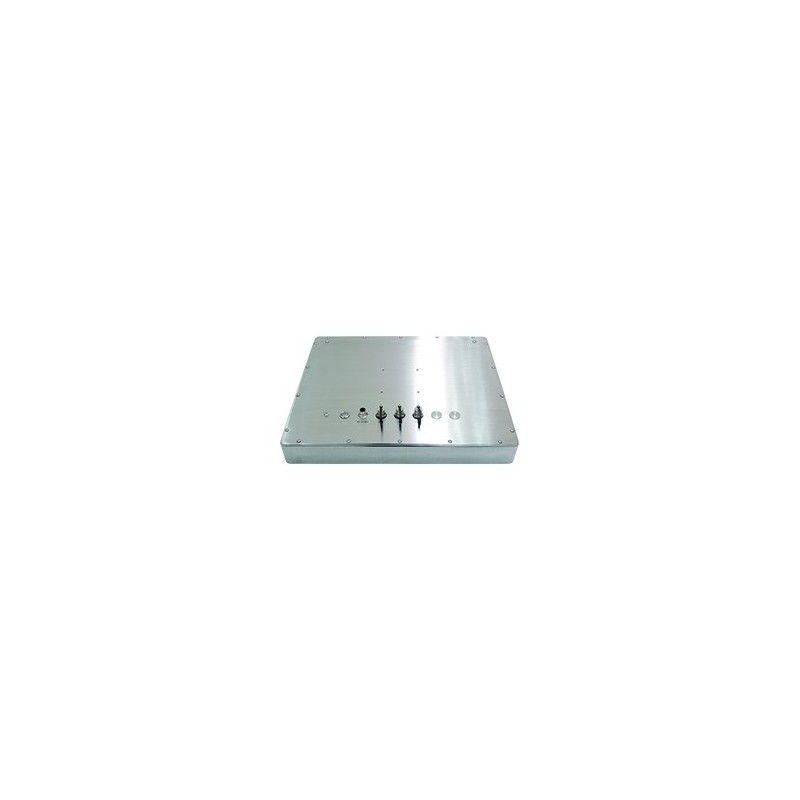

copy of 17 "waterproof Panel PC IP65 / IP69K for & rear i3 or i5 processor, M12 connectors, flat front design, pcap touch
Product code: IPP15-IX-IP65
Build To Order. Can supply complete with SSD OS installed.
Other models and solutions can be offered.
15 "and 19" are available.
Please contact our sales department
1 x USB (M12 8 pin)
1 x LAN (M12 8 pin)
1 x COM (M12 8 pin)
9 ~ 36V DC input (M12 3 pin)
OS support: Win7, 8.1 Pro, Windows 10 IoT 2016
Option: high Brightness
IPP15-IX-IP65
Data sheet
- Weight
- 8kg
- Compositions
- 304 stainless steel Option: 316
- CPU
- i3-6100, Option i5
- Forsyning
- 9~36V DC, M12, 3 Pin
- Driftstemperatur
- -20℃ ~ +60℃
- Porte
- 1xM12 COM 1 RS232/422/485
- OS SUPPORT
- Win7, win8, Win 10
- Farve
- Max. 16.5M
- Effekt
- Arround 42W
- Hukommelse
- Onboard 4GB DDR3L 1600MHz, option 8GB
- Montering
- Vesa mount 75x75, Option: Yoke Mount
- IP-Tæthed
- Full IP65/IP69K
- Skærm
- 15" 1280x1024, 350 Nits. Option: 1000nits
- Ethernet
- 1xM12 8 pin
- USB
- 1 x M12 8-pin for USB 2.0 with waterproof cap, Option 2 x USB 2.0, 1 x USB 3.0
- Touch
- PCAB, Option Resistive or glas touch lighttransmission from 80% to 90%
- Kontrast
- 1000:1
- Betragtningsvinkel
- 170(H)/170(v) (1000 nits model 170(H)/160(v))
- RFID
- Option!
- Storage
- 1x2.5" HDD/SSD
- Approval
- CE/FCC class A
- mPCIe
- 1x Mini PCIe for option: wifi/BT
Built To Order
17 "Panel PC (optional: 15" / 19 "contact us)
Option: CPU Intel 6th gen. Core i3-6100 or I5
4GB 1 x SO DIMM DDR 3L (option 8GB)
Projective Capacitive Touch (pcap)
1x USB2.0 M12 8 pin
1x RS232 / 422/485 COM1 M12
1x Ethernet M12
1 x POWERM13 3 PIN 9 ~ 36V DC
1 x 2.5 "SATA SSD
1 x mPCIe slot for Option: Wifi / BT
Available with OS, RAM, CPU, SSD installed
Option: RFID on the < br> Option: 1000nits
Option: 2 x M12 can be used to ONE of the following extensions:
2x USB2.0
1x USB 3.0
1x LAN
1x COM
1x CAN
