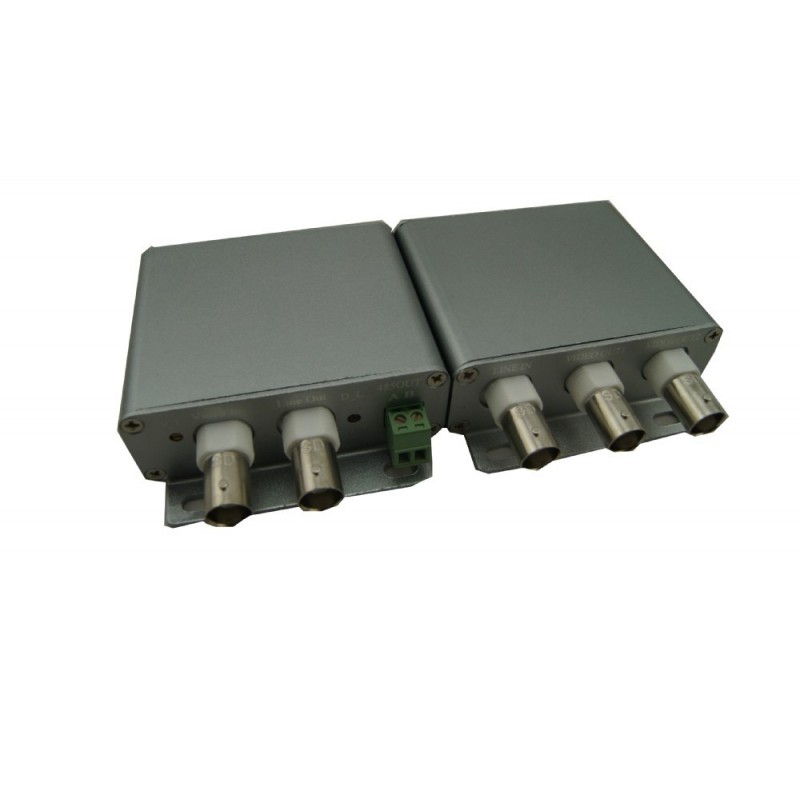

Booster / Multiplexer, Video + RS485 over Coax, only for video surveillance

Product code: BOOST-V1D1COAX

Ivyko klaida

  • Add to Comparison Remove from Comparison
    • 300.00 DKK
    Tax excluded
    Last items in stock
    Quantity

    • Superstrong video anti-jamming ability
    • Built-in lightning protection module.
    • Transmit video and random RS485 signal in one coaxial cable (realize optional video and RF)
    • Long transmission distance(it can transmit 800m with 4 grade effect image under SYV75-5 coaxial cable. The control signal can reach the high-speed ball control signal demanding)
    • Anti-stastic device with isolation circuit:prevent master-control room to be disturbed from outer static
    • Automatic recovery without adjustment:device can adjust indication automatically within the proper range.


    Video signal
    Video input/output level: 0.8—2.0Vp-p
    Video input/output impedance: 75Ω
    Cable impedance: 75Ω
    Video transmission bandwidth: 6.5MHZ
    Deferential gain(10%-90%APL): <±2%typ
    Deferenetial phase(10%-90%APL): <±2%typ
    Color/bright delay difference ≤30ns
    Image definition: <400TVL or 0-6MHZ extent<30%

    Control signal
    Transmission rate: 0-2MBps
    Transmission distance: ≤1200m
    Input/output signal: Half-duplex TX+ A  TX- B
    Transport protocol: Transparent transmission
    Power
    Normal working voltage: 12V DC ±3%
    Normal working current: ≥120MA (starting current≤300MA)

    BOOST-V1D1COAX
