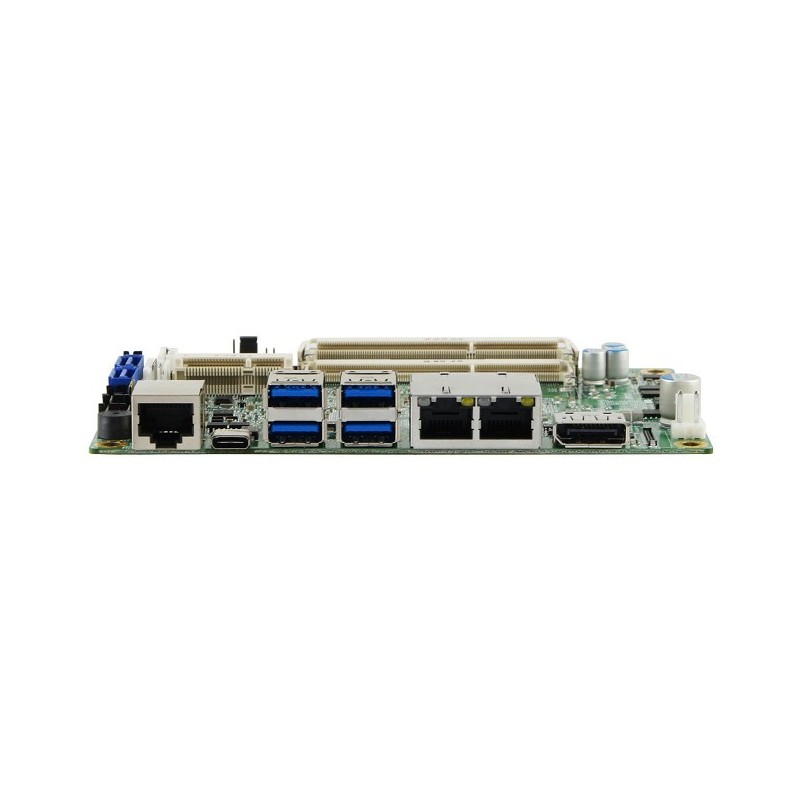

6th Gen Intel® Core ™ U-Series Processor 3.5-inch Disk Size SBC for Fanless Solution
Product code: BK3.5I3
3.5 "size CPU card. Industrial and reliable CPU card.
Can deliver with i5 or i7 CPU, contact our sales department regarding info.
Can offer low proffile heatsink option.
BK3.5I3
1 Item
Data sheet
- CPU
- BGA1356 for 6th Gen Intel® Core™ U-series i3 2.3GHz
- Forsyning
- +9V~ +24V DC-in, iSMART
- Udgange
- Supports eDP, DisplayPort and 24-bit dual channel LVDS
- Driftstemperatur
- 0°C~60°C (32°F~140°F)
- Porte
- 1x RS232/422/485 (jumperless selection), 3x RS232
- Strømforbrug
- Max. Power Requirement Intel® Core™ I3-6100U 2.3GHz w/ 2x DDR3L-1600 4GB +12V: 2.36A
- BIOS
- AMI BIOS
- Watchdog
- 256 levels
- SATA
- 2x SATA III
- Hukommelse
- 2x DDR3L-1600 SO-DIMM, Max 16GB (Non-ECC)
- Lyd
- + Realtek ALC662 codec
- Luftfugtighed
- 90% (non-condensing @60°C)
- Ethernet
- 2xRJ45 Intel® I219V LAN PHY Intel® I211AT PCI-E Gigabit LAN(as 2nd LAN)
- USB
- 4 ports USB3.0 on board 2 ports USB2.0 on via pin header
- Dimensioner
- 102mm x 147mm (4“ x 5.8“)
- I/O
- Chipset Fintek F81846AD-I
- Grafik
- VGA Controller 6th Gen Intel® Core™ U-series processor integrated graphics
- Msata
- 1x mSATA
- mPCIe
- 1x Mini PCI-E (Full-sized)
i3 Onboard 6th Gen Intel® Core™ U-series processor 2.3GHz
2x DDR3L-1600 SO-DIMM, Max. 16GB
Supports eDP, DP and 24bit dual channel LVDS
2x Intel® PCI-E Gigabit LAN
Watchdog timer, Digital I/O, mSATA, iSMART
2x USB 2.0, 4x USB 3.0, 1x USB 3.1(Type-C), 4x COM, 2x SATAIII
1x Mini PCI-E slot
