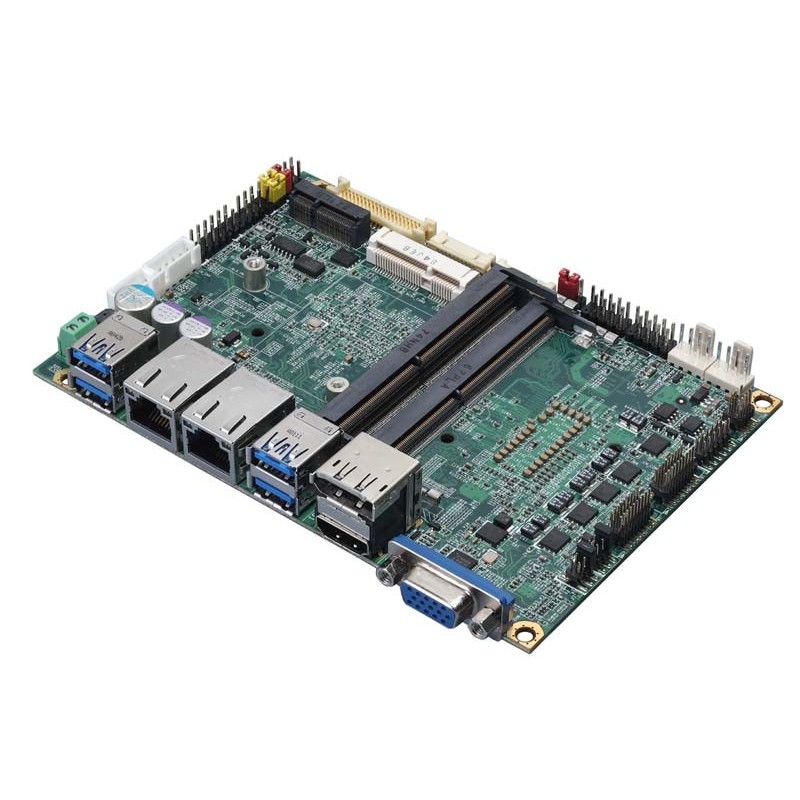

Embedded CPU card format 3.5" i5 gen. 8/9, VGA, DP, HDMI, LVDS trippel display support, 2xRJ45, 6x USB, 4 x COM

Product code: BK3.5-I5-GEN89

Onboard Intel® 8th & 9th Gen Intel® Core™ H-series Processor
2 x DDR4 SO-DIMM 2666 MHz up to 64GB
Integrated VGA, DisplayPort, HDMI, LVDS for Triple display support
1 x Intel® Gigabit PHY LAN
1 x Intel® Gigabit LAN
1 x MiniPCIe (support mSATA)
1 x M.2 (Key E)
2 x SATA3
4 x USB2.0
4 x USB3.1 Gen2
4 x COM
1 x GPIO
1 x PS/2
Support Watchdog Timer
Support 4K resolution
DC input 9~35V
-20°C ~ 60°C

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Industrial Single Board Computer,  3.5 inch Miniboard embedded system board based on 8th & 9th generation Intel® Core™ H-series processors.
    The 3.5 inch Miniboard platform is designed for the 8th & 9th generation Intel® Core™ H-series processors in the FCBGA1440 package.
    support DDR4 memory (Two DDR4 SO-DIMM 2666 MHz up to 64GB). The platform is based on Intel® UHD Graphics, this GPU offers 24 execution units (EUs) clocked at up to  1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely  in hardware and thereby much more efficiently than before. Displays can be connected via 1 VGA, 1 LVDS, 1 HDMI and one DP port up to three displays can be controlled simultaneously.
    Offers lots of features including high-speed data transfer interfaces such as 4 x USB3.1 Gen2 and 2 x SATA3, equipped with dual Gigabit Ethernet, and comes with PS/2 port, 2 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x MiniPCIe socket(Supports mSATA), 1 x M.2 (Key E).

    BK3.5-I5-GEN89

    Data sheet

    CPU
    I5 8th & 9th Gen Core™ H-series Processors. Package Type: FCBGA1440
    Forsyning
    DC input 9~35V
    Driftstemperatur
    Operating within 0 ~ 60°C Storage within -20 ~ 80°
    Chipset
    Intel® QM370
    Watchdog
    Generates a system reset with internal timer for 1min/s ~ 255min/s
    SATA
    Intel® QM370 built-in 2 x Serial ATA3 interface up to 600MB/s Support RAID 0, 1 and Intel Rapid Storage Technology.
    Lyd
    Realtek ALC262 HD Audio
    Luftfugtighed
    10%~90%, non-condensing
    Ethernet
    1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT Gigabit LAN
    USB
    4xUSB 2.0, 4xUSB3.1 Gen.2
    Dimensioner
    3.5" 146x101mm(lxW)
    Grafik
    Intel® UHD Graphics, VGA, HDMI, Sisplay POrt
    GPIO
    Onboard programmable 8-bit digital I/O interface
    mPCIe
    1 x PCIE Mini card (Support mSATA)
    M.2
    1 x M.2 (Key E)
    RAM
    2 x 260-pin DDR4 2666 MHz SO-DIMM up to 64GB (Support Non-ECC, unbuffered memory)
