19 "Marine Panel Monitor, IP66, IP54, 1440x900, 16: 9, LED Monitor, 250 Nits, VGA
Product code: MON19-WS-MFM-MARINE

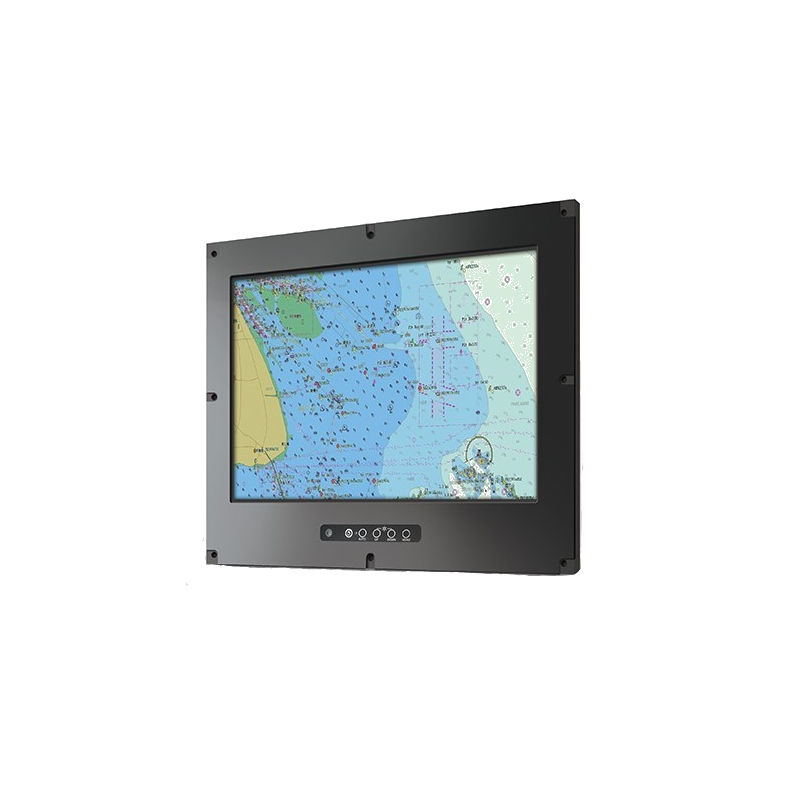

Marine 19 "Wide Screen Monitor
Dust and Water Resistant - Can withstand flushing
19" LCD monitor with ECIDS color display. ECDIS is one of the most stringent applications of display technology. This monitor is for Vesa mounting. Good for use in harsh environments. Can be negotiated in several sizes.
Contact our sales department for more information.
MON19-WS-MFM-MARINE
Data sheet
- Weight
- 5 KG
- Forsyning
- 9~36VDC wide voltage input (Isolated DC-DC voltage regulator built-in)
- Driftstemperatur
- 0o C ~ 50o C (32o F ~ 122o F) , 10% ~ 90%
- Input
- PC systems (Analog RGB)
- Signaler
- Analog RGB (0.7/1.0 Vp-p, 75 ohms)
- I/O
- 1 x VGA, 1 x PC audio jack stik
- Touch
- Optional: Resistive touch, Capacitive touch, infrared touch
- Kontrast
- 250 cd/m2 (typ) / 1000 : 1
19 "LED Display
ECDIS Color Display
IP66 Front
IP54 Rear
1 x VGA
1 x Jack Audio
1 x 9-36V DC Power Supply
Wide Screen
Anit shock and vibration design
LED backlight
Mount: VESA 200/400
Optional: Built-in connector
VERSA 200/400
