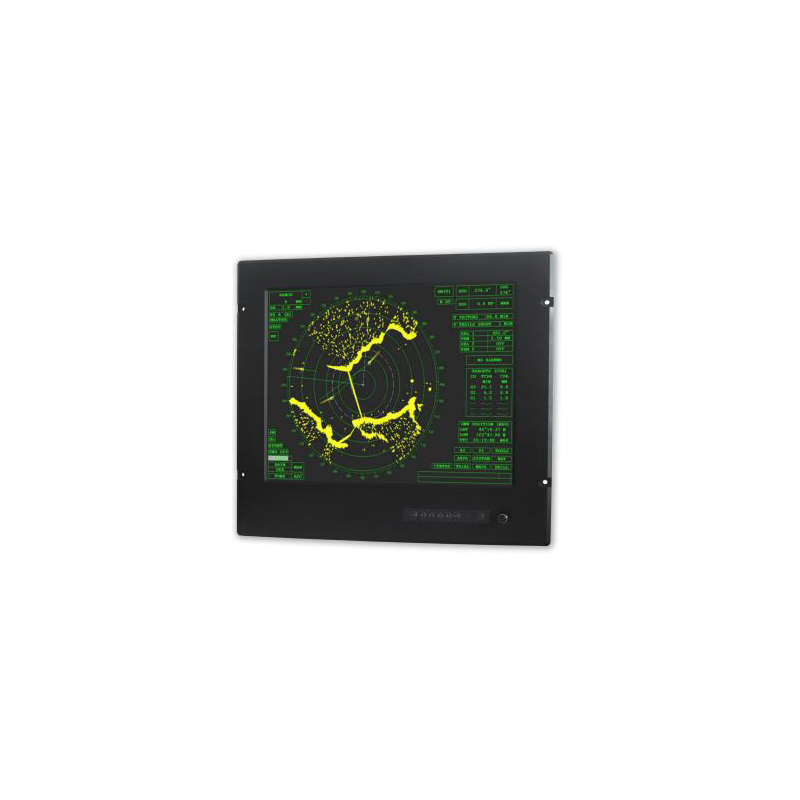

19 "TFT, marine approved panel monitor with IP65 density, without touch
Product code: MON-MAR19A
19", IP65, 1000 nits LCD, marine godkendt panel moniter med resistive touch support
MON-MAR19A
Data sheet
- Weight
- 9.5 / 13 KGs
- Compositions
- Alminum Front Bezel + Metal Housing
- Driftstemperatur
- 0 - 50 deg. C
- Montering
- Panel ( Flush ) Mount, VESA Mount, Robust Bracket, Sun-visor Bracket
- IP-Tæthed
- IP65 tæthed
- Strømforsyning
- AC standard IEC inlet
- Dimensioner
- fysiske dimensioner: 483 x 444 x 70mm. pakke: 620 x 580 x 220mm
- I/O
- 1 x HDMI, 1 x VGA, 1 x Composite (RCA), 1 x 3.5" jack audio
- Kontrast
- 1000:1, 250 cd/m2
- Certifications
- CE / FCC / RoHs / IEC60945
19 "TFT Marine Monitor With IP65, No Touch
LED Backlight
250 Nits
1 x HDMI, 1 x VGA, 1 x Composite, 1 x Audio3.5 Jack Connector
Anti- Vibration: 5 - 500 Hz / 1 Grms PTP
Anti Schock: 15G / Peak (11ms)
AC Power Standard IEC Inlet 100-240V AC
Power On / Off Via Front Buttons
VR Brightness Knob Adjustment
Power Mode Status LED Indicator
On Screen Display Control (OSD)
Flush Mount, VESA Mount
Optional: AR Hardness Glass: 3mm Anti-Reflective Protect Glass
Optional: DC Power: Isolate 12V / 24V / 48V / 125V DC Power
Optional: SR-BKT: Stand & Roof Mounting Bracket
Optional: RT-BKT: Rotary Plate Rugged Bracket
Optional: SV-BKT: Sun-Visor bracket
