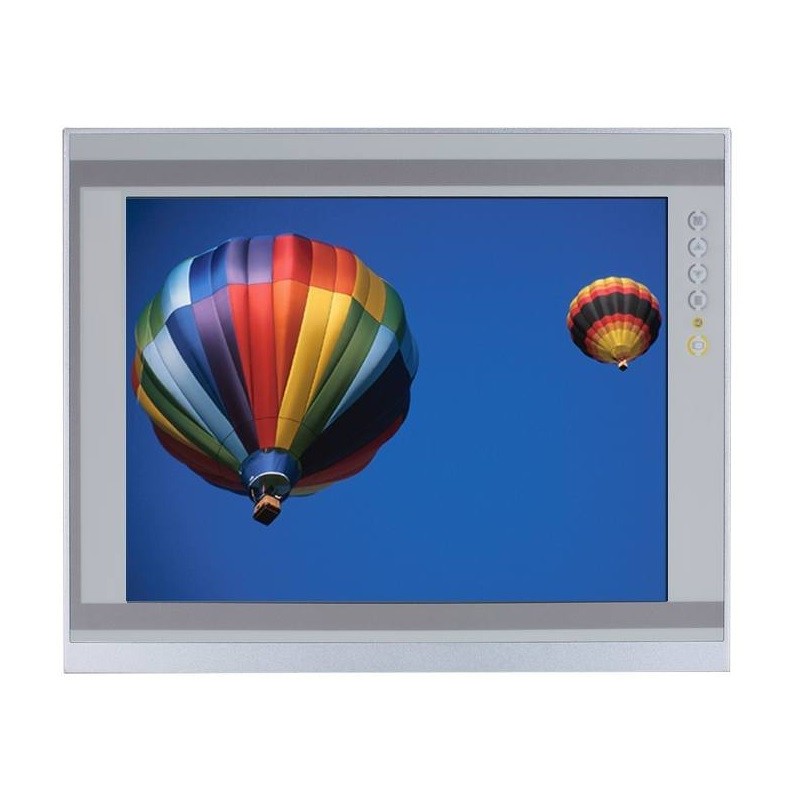

12 "Panel Monitor, Touch, IP65 front, VGA, DVI-D, HDMI, 500nits, 4: 3 format USB (standard) or RS232 touch
Product code: MON12-P+
Equipped with a 12.1 "TFT XGA LED screen with 1024 x 768 pixels resolutions and up to 16.7 million colors and supports 500 nits high brightness. Comes with USB (standard) or RS-232 touch screen. Graphics Input HDMI, DVI-D and VGA. In order to fit different application environments is the 12.1in IP65 classified touch screen of slim type. Supports panel mount, wall mount, and rack mounting VESA arm. With only 24.95 mm depth, the feature rich screen easily implemented on any space limited place.
PG
MON12-P+
Data sheet
- Weight
- 2,35kg
- Forsyning
- 15 W Screw-type external AC / DC power adapter
- Driftstemperatur
- 0°C ~ +55°C
- Tilbehør
- 1 x VGA cable 1 x RS232 or USB cable for touchscreen (for touch version) 1 x Audio cable 1 x EU/US power cord (for AC version)
- Lysstyrke
- 500 nits
- Montering
- Vesa 100, Panel mount, Option: Rackmount, Desktop stand, wall mount
- Dimensioner
- (W x D x H) 311.81 x 54.95 x 250.31 mm (12.28" x 2.16" x 9.85")
- Touch
- Resistive touchscreen
- Approval
- CE
12 "LCD
IP65 close NEMA 4/12 front
DVI, HDMI, VGA
Resolution 1024 x 768 to 4: 3
Touchscreen RS232 or USB interface (standard with USB )
Vesa 100 mount, panel mounting.
OSD
12 / 24Vdc standard screw terminal
Option! Rack mounting
Option! 230VAC
