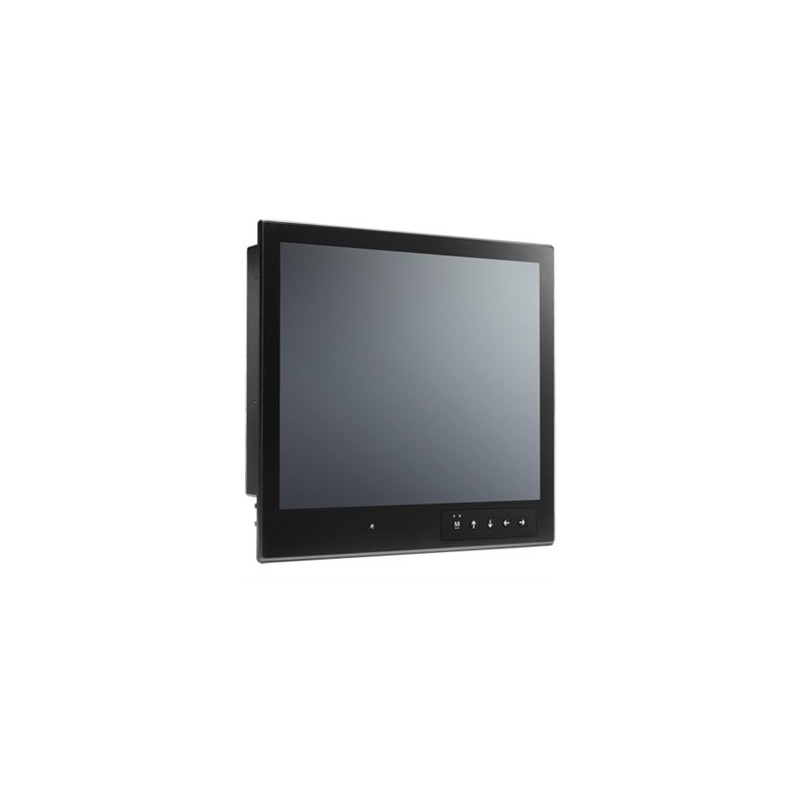

19 "LCD monitor with 300-nits, dust and leakproof IP54, dual AC / DC inputs,
Product code: MON19-MD-LED
MON19-MD-LED
Data sheet
- Weight
- 7,800 g
- Forsyning
- 100 to 240 VAC, 24 VDC (18 to 30 V)
- Porte
- 1 x RS-232, RS-232/422/485 ports x 1, software-selectable (terminal block)
- IP-Tæthed
- IP54 (IP66 optional)
- Dimensioner
- 429 x 387 x 75 mm
- I/O
- 1 x DVI-D, 1 x VGA
- Antal farver
- 16.7M (8-bit/color)
- Kontrast
- 2000:1, 300 cd/m2, 5:4
- Certifications
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 1k V
19 "LCD metal monitor, IP54 & nbsp; front,
1280 x 1024
300 nits, 2000: 1, 5: 4
LED backlight
Response time: 20ms
viewing angle : 178 ° / 178 °
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15-pin D-sub female)
1 x RS232 / 422/485 (software selectable terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
429 x 387 x 75 mm
Weight: 7,800 g
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx- , Rx +, Rx, GND & nbsp;
