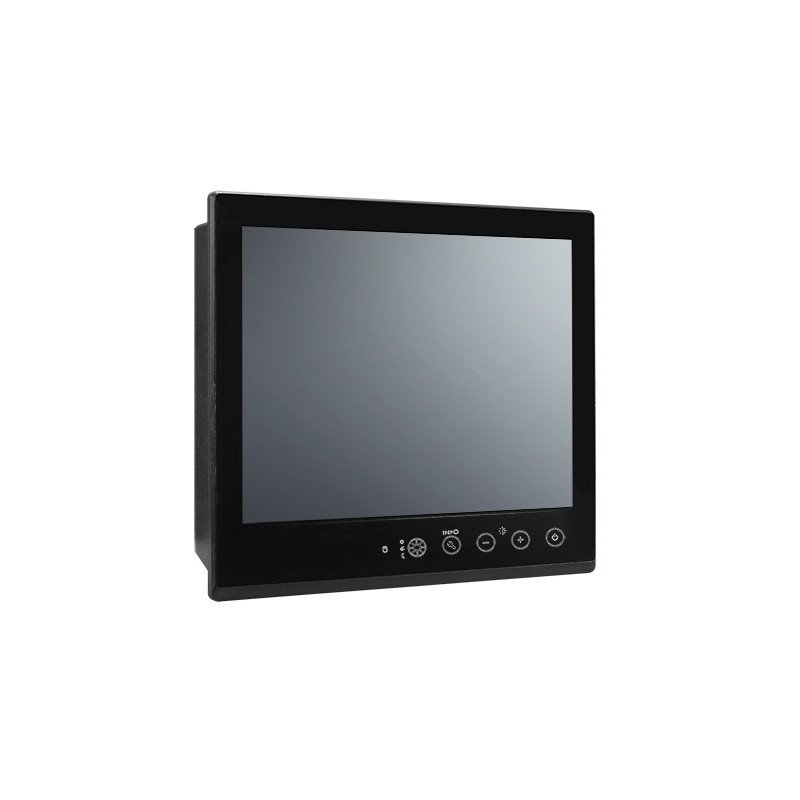

15 "monitor with 1000-nits LCD with electric without touch, dust and leakproof IP66, Dual AC / DC inputs,
Product code: MON15-MD
MON15-MD
Data sheet
- Weight
- 6,100 g
- Compositions
- Metal
- Driftstemperatur
- -40 to 70°C
- Porte
- RS-232 ports x 1 (DB9 male) RS-232/422/485 ports x 1, software-selectable (terminal block)
- IP-Tæthed
- IP66, front IP20, rear
- Luftfugtighed
- 5 to 95% (non-condensing)
- Dimensioner
- 429 x 387 x 75 mm
- I/O
- 1 x DVI-D, 1 x VGA
- Antal farver
- 16.7M (8-bit/color)
- Kontrast
- 1000 cd/m2, 700:1, 4:3
- Certifications
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 1k V
24 "TFT metal monitor with capacitive touch, IP66, IP20
LED backlight
1280 x 1024
1000 nits, 700: 1, 4: 3
Display angle: 160 ° / 140 °
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS-232 (DB9 male)
1 x Optional RS232 / 422/485
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Desktop, Panel mounting
Weight: 6,100 g
429 x 387 x 75 mm
-40 to 70 ° C
CISPR 32, FCC Part 15B Class A
EN 55032/24
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND
