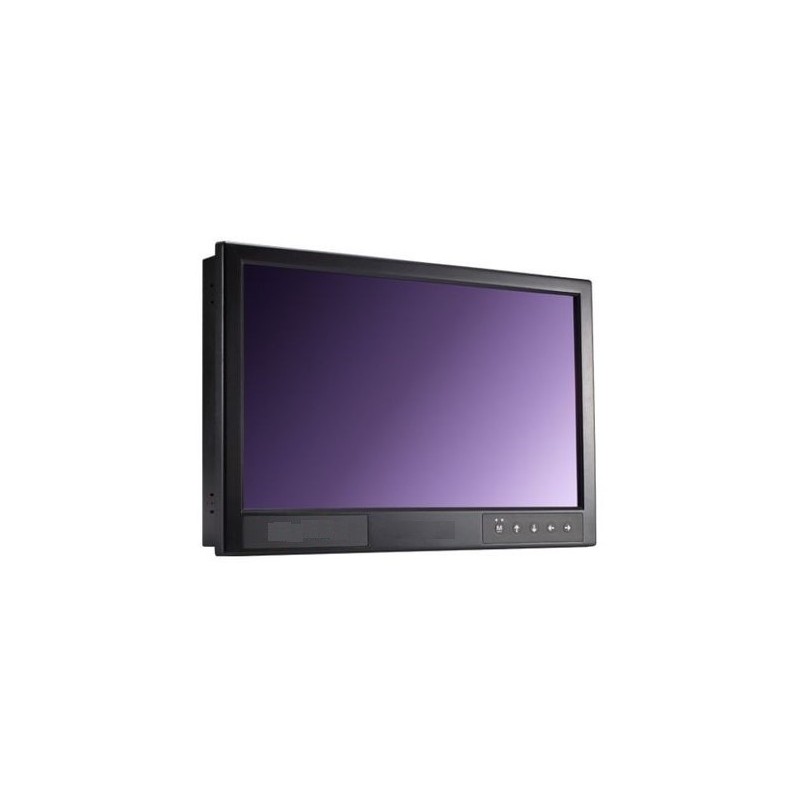

24 "TFT touch monitor with 300-nits LCD, with single touch, dust and leakproof IP66, Dual AC / DC inputs,
Product code: MON24-TFT-MD-T
MON24-TFT-MD-T
Data sheet
- Weight
- 12000 g
- Compositions
- Metal
- Driftstemperatur
- -15 to 55°C
- Porte
- RS-232/422/485 ports x 1, software-selectable (terminal block)
- Pixels
- 1920x1080
- Dimensioner
- 647 x 414 x 95 mm
- I/O
- 3 x BNC, 2 x DVI-I, 1 x VGA
- Antal farver
- 16.7M (8-bit/color)
- Touch
- Capacitive touch, 4 points
- Kontrast
- 5000:1, 300 cd/m2, 16:9
- Installation
- Panel montering
- Certifications
- EN 55032/24, CISPR 32, FCC Part 15B Class A, EN 60950-1, IEC 60950-1, UL 60950-1
24 "TFT monitor LED backlight, IP66
LED backlight
1280 x 1024
350 nits, 5000: 1, 16: 9
Display angle: 178 ° / 178 °
Capacitive 4 points
3 x BNC
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS232 / 422/485 (software selected terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Panel mounting
-15 to 55 ° C (5 to 131 ° F) < br> CISPR 32, FCC Part 15B Class A
EN 55032/24 for weight: 12000 g
647 x 414 x 95 mm
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS -485-4w: Tx +, Tx-, Rx +, Rx-, GND
