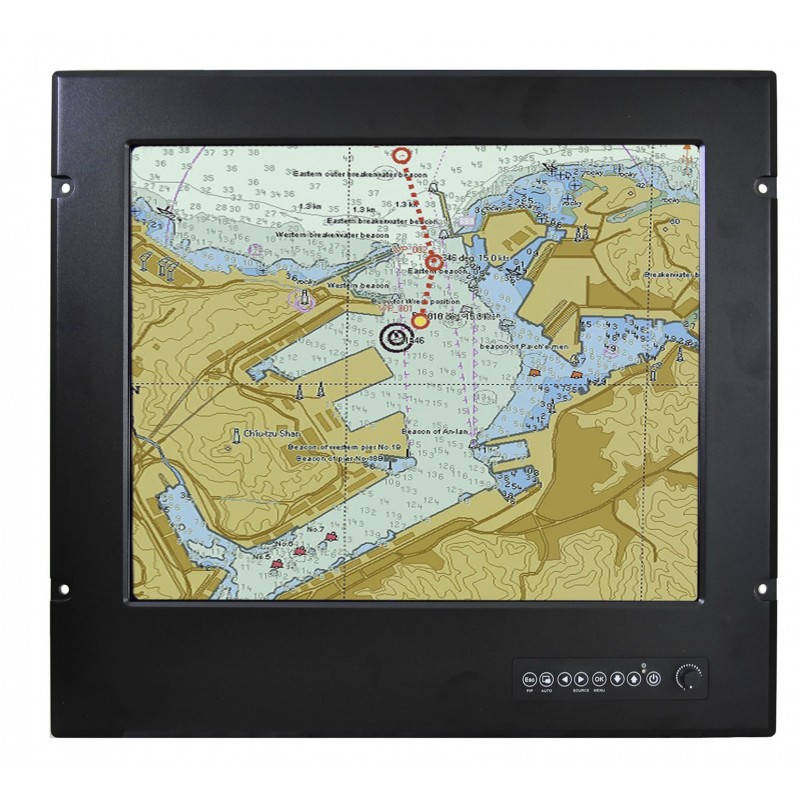

19 "DNV Marine Approved Panel Monitor, Supply 24Vdc, 5: 4 Format

Product code: MON-MAR19"

19 "DNV2.4, IEC60945 Marine Monitor Without Touch
400 Nits
IP66
Resolution: 1280x1024 - 5: 4 Format
Active Display Area: 376.32 (H) x 301.06 (V) mm
1 x composite (RCA phono)
1 x DVI-D
1 x S-Video (SVHS)
1 x RBG (D-SUB)
Power Supply: Terminal block 24V DC
Mounting: Panel (Flush) mount with IP66 *, VESA, Bracket mounting
Anti vibration: 5Hz - 500Hz / 1Grms / 3Axis
Anti shock: 15G, 11ms duration
Optional: AC power signal Std IEC Inlet
Optional: Touch Screen D-SUB 9P Female
Optional: Remote Control via RS232 D-SUB 9P

  • Add to Comparison Remove from Comparison

    • Call For Price
    0.00 DKK
    Tax excluded
    On the way in
    Quantity

    Marine approved monitor for panel mounting.
    Can be delivered with Touch.
    Other models and sizes can be delivered contact our sales department

    MON-MAR19"

    Data sheet

    Weight
    5.4 Kg
    Udgange
    RGB Signal D-SUB 15P connector(female) Composite Video RCA phono plug S-Video Signal S-Video (SVHS) plug DVI-D Signal DVI-D input 24-pin connector
    Driftstemperatur
    -15 ~ +55°C
    Montering
    Vesa, and stand (stand bracket is option)
    IP-Tæthed
    Front IP66, (saw touch IP54)
    Skærm
    19" Transflective
    OSD
    On Screen Display control (OSD)
    Luftfugtighed
    5% to 95% (non-condensing)
    Strømforsyning
    24Vdc DC Power Signal Screw terminal block
    Indikatorer og kontakter
    LED indicators Power Mode Status LED
    Grafik
    19", Res 1280 x 1024, Pixel Pitch (RGB) 0.294 (H) x 0.294 (V) Contrast Ratio 1000:1 (typ.) Brightness 400 (typ.) Viewing Angle -85~85 (H); -80~80 (V) Active Display Area 376.32 (H) x 301.06 (V) Max Colors 16.7M (8bits/ colors)
    Betjening
    Power On/Off via Front Button, VR Brightness Knob Control
    Chok/Vibration
    Anti-Vibration 5Hz~500Hz / 1Grms/3 Axis Anti Shock 15G, 11ms duration
    Approval
    DNV2.4,IEC60945,IACS-E10,CE,FCC
